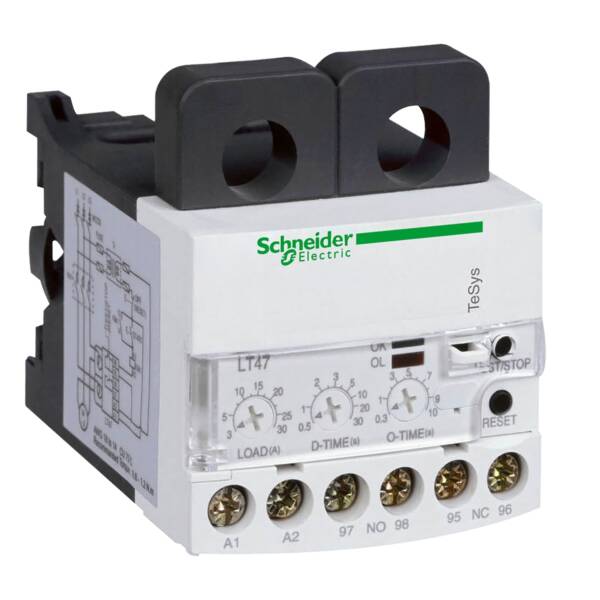

LT4706M7S

TeSys LT47 electronic over current relays - manual - 0.5...6 A - 200...240 V AC - Schneider Electric - LT4706M7S

Control

~~List Price £94.66 +VAT~~

Our Price £71.00 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys LR47 electronic overcurrent relay, 6A/690V, with manual reset, to be supplied with 200-240V AC, for protection of motors with a rated current 0.5-5A. It provides 3 dials to adjust the protection, LOAD (0.5-6A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when there is a missing phase during more than O-TIME. The device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO+1NC for fault signalling. Settings can be locked by sealing the transparent cover. DIN rail mounting, without power terminals (currents monitored by 2 current transformers crossed by the motor cables). Multi standards certified (IEC, UL, CSA, CCC, EAC), it conforms to RoHS/REACh regulation.

Brand: Schneider Electric
Range: TeSys Deca overcurrent relays
Part No: LT4706M7S
Weight (kg): 0.19 kg
Type: TeSys Deca overcurrent relays
Type of electrical connection of main circuit: Screw connection
Width: 71
Rated control supply voltage AC 50 Hz: 200…240 Volt
Rated control supply voltage AC 60 Hz: 200…240 Volt
Release class: Adjustable
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Mounting method: Separate positioning
Operating voltage AC 50 Hz: 200…240 Volt
Depth: 77.2
Operating voltage AC 60 Hz: 200…240 Volt
Reset function automatic: FALSE
Reset function input: TRUE
Voltage type (operating voltage): AC
External power supply required: FALSE
Voltage type for actuating: AC
Height: 70.3
Adjustable current range: 0.5…6 Ampere
Reset function push-button: TRUE
