TeSys LRD thermal overload relays - 9...13 A - class 20 - Schneider Electric - LRD1516
TeSys LRD thermal overload relays - 9...13 A - class 20 - Schneider Electric - LRD1516

LRD1516

TeSys LRD thermal overload relays - 9...13 A - class 20 - Schneider Electric - LRD1516

Automation

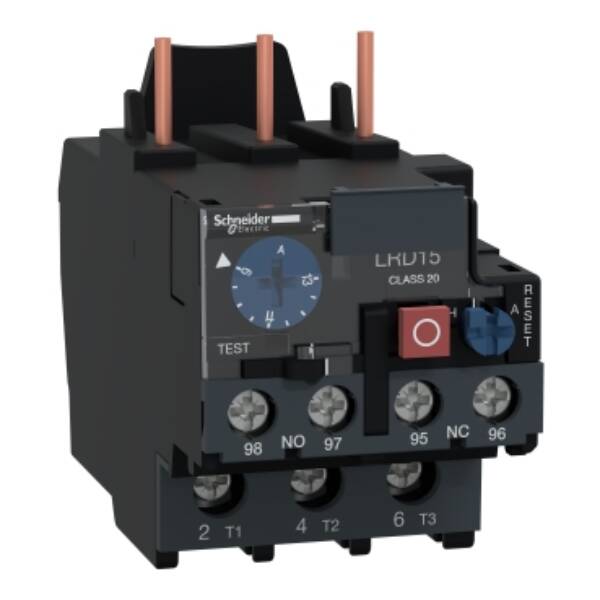

TeSys LRD thermal overload relay, 13A/690V, thermal setting range 9-13A, tripping class 20, for protection of 3-phase motors 5.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signaling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B105 (to be ordered separately). Multi standards certified (IEC, UL, CSA, Marine), Green Premium compliant (RoHS/REACh).
List Price £68.63 +VAT

Our Price £51.47 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days

Specifications

Brand
Schneider Electric
Type
TeSys Deca overload relays
Range
TeSys Deca overload relays
Part No
LRD1516
Weight (kg)
0.23 kg

Datasheet for LRD1516 - TeSys LRD thermal overload relays - 9...13 A - class 20 - Schneider Electric - LRD1516
