LRD3363

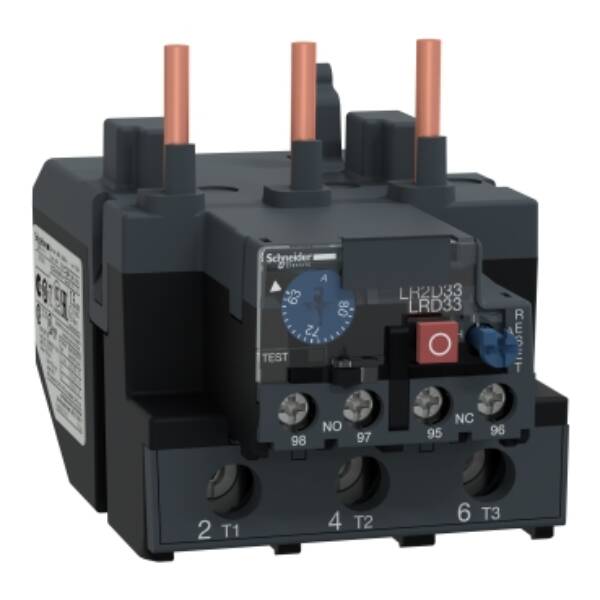

TeSys LRD thermal overload relays - 63...80 A - class 10A - Schneider Electric - LRD3363
Automation
TeSys LRD thermal overload relay, 80A/1000V, thermal setting range 63-80A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Our Price £109.16 +VAT
SAVE 25% OFF List Price
Specifications
- Brand
- Schneider Electric
- Type
- TeSys Deca overload relays
- Range
- TeSys Deca overload relays
- Part No
- LRD3363
- Weight (kg)
- 0.51 kg
