LRD22L

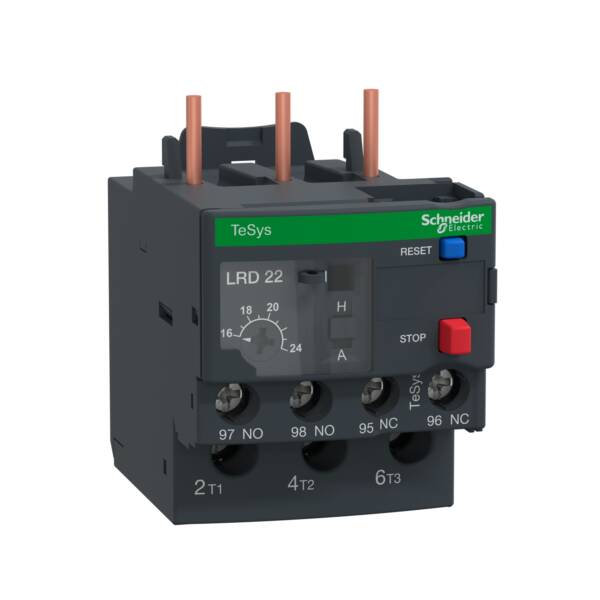

TeSys LRD thermal overload relays - 17...24 A - class 20 - Schneider Electric - LRD22L

Automation

TeSys LRD thermal overload relay, 24A/690V, thermal setting range 16-24A, tripping class 20, for protection of 3-phase motors 11kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D25-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B205 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

~~List Price £172.75 +VAT~~

Our Price £129.56 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days
