LRD05L

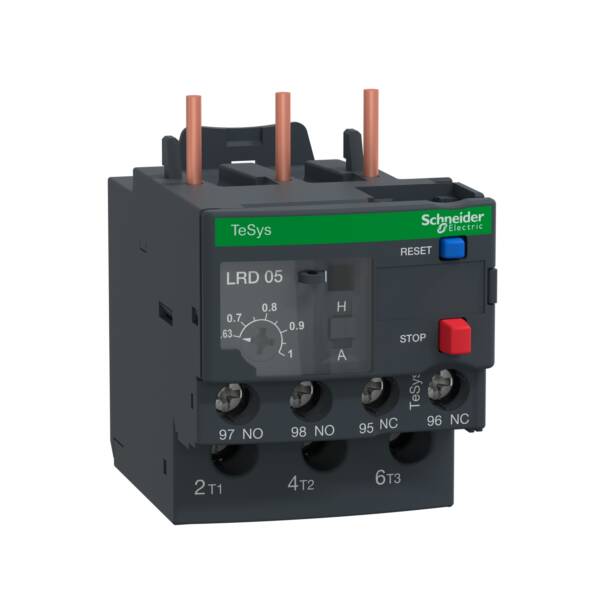

TeSys LRD thermal overload relays - 0.63...1 A - class 20 - Schneider Electric - LRD05L

Automation

~~List Price £186.83 +VAT~~

Our Price £140.12 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys LRD thermal overload relay, 1A/690V, thermal setting range 0.63-1A, tripping class 20, for protection of 3-phase motors 0.25-0.37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B205 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric
Range: TeSys Deca overload relays
Part No: LRD05L
Weight (kg): 0.14 kg
Type: TeSys Deca overload relays
