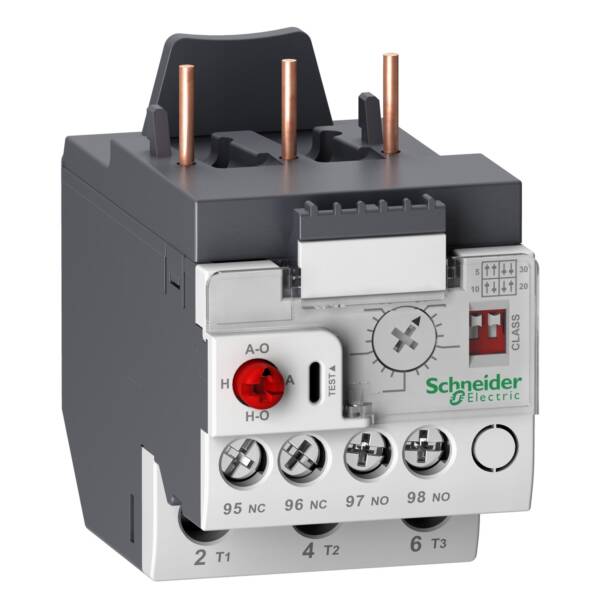

TeSys LRD - electronic thermal overload relay - 3P - 0.1...0.5 A - Schneider Electric - LR9D01
Control
List Price £99.39
+VAT
Our Price £74.54
+VAT
SAVE 26% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
TeSys LR9D electronic overload relay, 0.5A/690V, thermal setting range 0.1-0.5A, selectable tripping class 5-10-20-30, for protection of 3-phase motors up to 0.12kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC),
Brand
Schneider Electric
Range
TeSys LR9
Part No
LR9D01
Weight (kg)
0.21 kg
Type
TeSys LR9
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
690 V
craft\elements\db\ElementQuery
690 V
craft\elements\db\ElementQuery
Adjustable
craft\elements\db\ElementQuery
Direct attachment/single positioning
Reset function automatic
TRUE
Reset function input
FALSE
craft\elements\db\ElementQuery
AC
Adjustable current range
0.1…0.5 A
Reset function push-button
TRUE
Datasheet for LR9D01 - TeSys LRD - electronic thermal overload relay - 3P - 0.1...0.5 A - Schneider Electric - LR9D01
