LP2K0910BD3

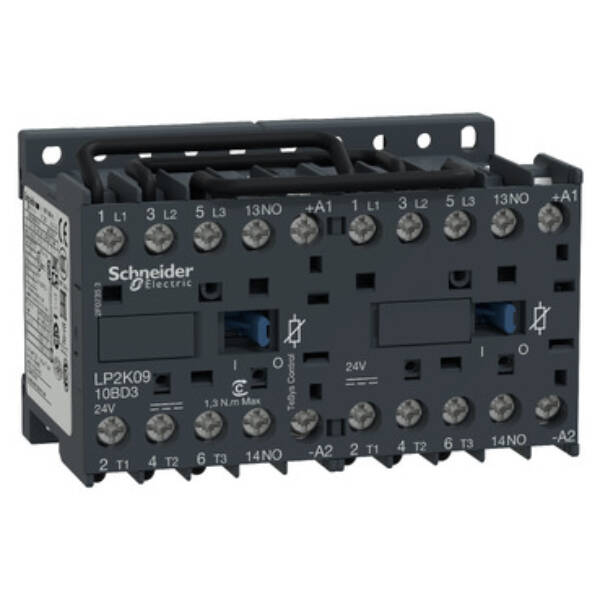

TeSys K reversing contactor - 3P - AC-3 <= 440 V 9 A - 1 NO - 24 V DC coil - Schneider Electric - LP2K0910BD3

Automation

~~List Price £104.96 +VAT~~

Our Price £78.72 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides 24V DC coil with transient suppressor module, 2NO built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys K contactors
Part No: LP2K0910BD3
Weight (kg): 0.45 kg
Type: TeSys K contactors
