LC2K0601B72

TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 24 V AC coil - Schneider Electric - LC2K0601B72

Control

~~List Price £88.23 +VAT~~

Our Price £66.17 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

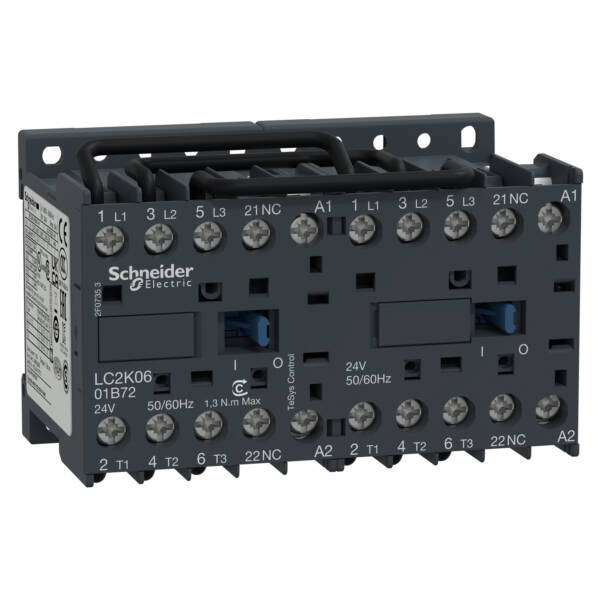

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides 24V 50/60Hz AC coil with transient suppressor module, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC)

Brand: Schneider Electric
Range: TeSys K contactors
Part No: LC2K0601B72
Weight (kg): 0.39 kg
Type: TeSys K contactors
Type of electrical connection of main circuit: Screw connection
Rated operation power at AC-3, 400 V: 2.2
Type of electrical connection for auxiliary- and control current circuit: Screw connection
Voltage type (operating voltage): AC
Rated operation power NEMA: 2.24
Height: 58
Rated operation current Ie at AC-3, 400 V: 6
Voltage type for actuating: AC
Degree of protection (IP): IP20
Width: 90
Rated control supply voltage AC 50 Hz: 24 Volt
Rated control supply voltage AC 60 Hz: 24 Volt
Rail mounting possible: FALSE
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 1
Operating voltage AC 50 Hz: 440 Volt
Depth: 57
Operating voltage AC 60 Hz: 440 Volt
Function: Reversing contactor
Degree of protection (NEMA): Other
