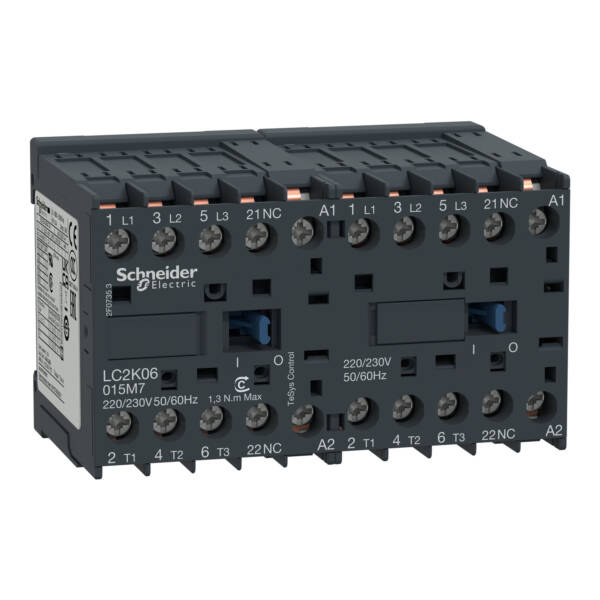

TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 220...230 VAC coil - Schneider Electric - LC2K06015M7

TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 220...230 VAC coil - Schneider Electric - LC2K06015M7

LC2K06015M7

TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 220...230 VAC coil - Schneider Electric - LC2K06015M7

Control

~~List Price £89.28 +VAT~~

Our Price £66.96 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

"TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (4kW@400V)," "and for non-inductive load control applications up to 20A/690V AC-1." "It provides a 220/230V 50/60Hz AC coil,1NC built-in auxiliary contact, connection by solder pins for printed circuit boards." "For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications." "With feature (90mm width), DIN-rail mounting or screw fixing." "Multi standards certified (IEC, UL, CSA, CCC, EAC)

Brand: Schneider Electric
Range: TeSys K contactors
Part No: LC2K06015M7
Weight (kg): 0.40 kg
Type: TeSys K contactors
Type of electrical connection of main circuit: PCB connection
Rated control supply voltage Us at AC 50HZ: 220…230 V
Rated control supply voltage Us at AC 60HZ: 220…230 V
Rated operation power NEMA: 2.24
Voltage type for actuating: AC
Rated operation current Ie at AC-3, 400 V: 6
Function: Reversing safety
Degree of protection (IP): IP20
Rated operation power at AC-3, 400 V: 2.2
Degree of protection (NEMA): Other

Datasheet for LC2K06015M7 - TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 220...230 VAC coil - Schneider Electric - LC2K06015M7

Download
