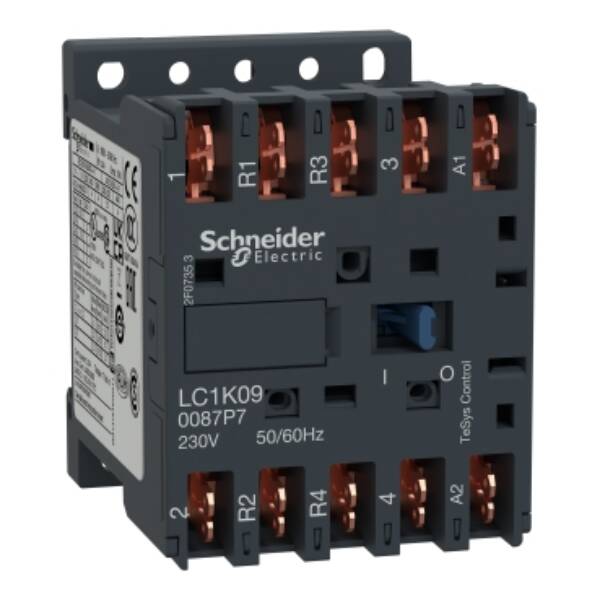

TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 230 V AC coil - Schneider Electric - LC1K090087P7

TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 230 V AC coil - Schneider Electric - LC1K090087P7

LC1K090087P7

TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 230 V AC coil - Schneider Electric - LC1K090087P7

Control

~~List Price £38.52 +VAT~~

Our Price £28.89 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys K contactor, 4 poles (2NO+2NC), for non-inductive load control applications up to 20A/690V AC-1. It provides a 230V 50/60Hz AC coil, without built-in auxiliary contact, connection by Faston connectors. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Brand: Schneider Electric
Range: TeSys K contactors
Part No: LC1K090087P7
Weight (kg): 0.19 kg
Type: TeSys K contactors
Type of electrical connection of main circuit: Flat plug-in connection
Width: 45
Rated control supply voltage AC 50 Hz: 230 Volt
Rated control supply voltage AC 60 Hz: 230 Volt
Number of normally closed contacts as main contact: 2
Number of normally open contacts as main contact: 2
Modular version: FALSE
Operating voltage AC 50 Hz: 440 Volt
Depth: 57
Operating voltage AC 60 Hz: 440 Volt
Rated operation current Ie at AC-1, 400 V: 20
Height: 58
Voltage type for actuating: AC

Datasheet for LC1K090087P7 - TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 230 V AC coil - Schneider Electric - LC1K090087P7
