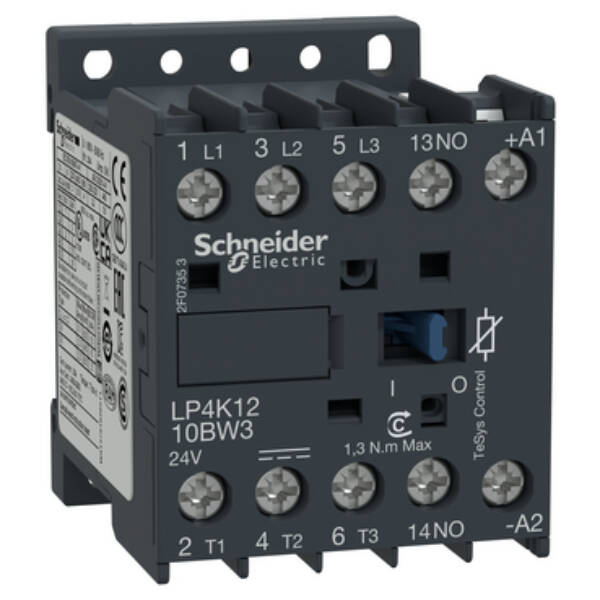

TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NO aux. - 24 V DC coil - Schneider Electric - LP4K1210BW3

TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NO aux. - 24 V DC coil - Schneider Electric - LP4K1210BW3

LP4K1210BW3

TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NO aux. - 24 V DC coil - Schneider Electric - LP4K1210BW3

Control

~~List Price £60.89 +VAT~~

Our Price £45.67 +VAT

SAVE 25% OFF List Price

Fast Track Delivery Product

TeSys K contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Brand: Schneider Electric
Range: TeSys K contactors
Part No: LP4K1210BW3
Weight (kg): 0.22 kg
Type: TeSys K contactors
Type of electrical connection of main circuit: Screw connection
Width: 45
Rated operation power at AC-3, 400 V: 5.5
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Depth: 57
Rated operation current Ie at AC-1, 400 V: 20
Rated control supply voltage DC: 24 Volt
Height: 58
Rated operation current Ie at AC-3, 400 V: 12
Rated operation current Ie at AC-4, 400 V: 6
Voltage type for actuating: DC
Rated operation power at AC-4, 400 V: 2.2

Datasheet for LP4K1210BW3 - TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NO aux. - 24 V DC coil - Schneider Electric - LP4K1210BW3

Download
