LR2K0301

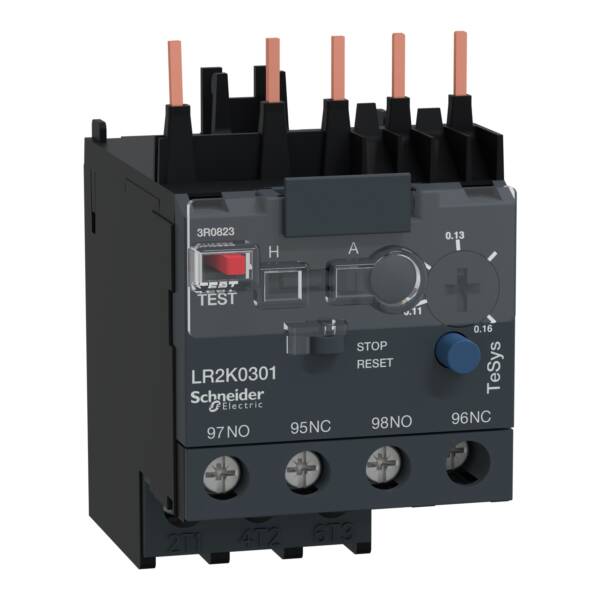

TeSys K - differential thermal overload relays - 0.11...0.16 A - class 10A - Schneider Electric - LR2K0301

Automation

~~List Price £40.23 +VAT~~

Our Price £30.17 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys LRK thermal overload relay, 0.16A/690V, thermal setting range 0.11-0.16A, tripping class 10A, for protection of 3-phase motors less than 0.06kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric
Range: TeSys LR2 k
Part No: LR2K0301
Weight (kg): 0.16 kg
Type: TeSys LR2 k
