GS2GB4

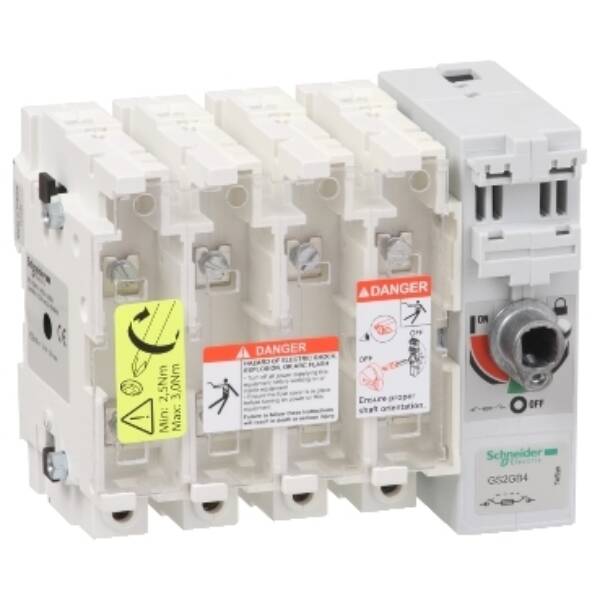

TeSys GS - switch-disconnector-fuse - 4 P - 63A - BS A2, A3 - Schneider Electric - GS2GB4
Automation
TeSys GS fuse switch-disconnector, 4 poles (4P), 63A/750V, to be used with type BS fuse links size A2-A3 up to 63A, for motor applications up to 30kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 4P terminal shrouds, high short circuit current rating 80kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).
Our Price £138.16 +VAT
SAVE 25% OFF List Price
Specifications
- Brand
- Schneider Electric
- Type
- TeSys GS
- Range
- TeSys GS
- Part No
- GS2GB4
- Weight (kg)
- 1.49 kg
