GS2S3

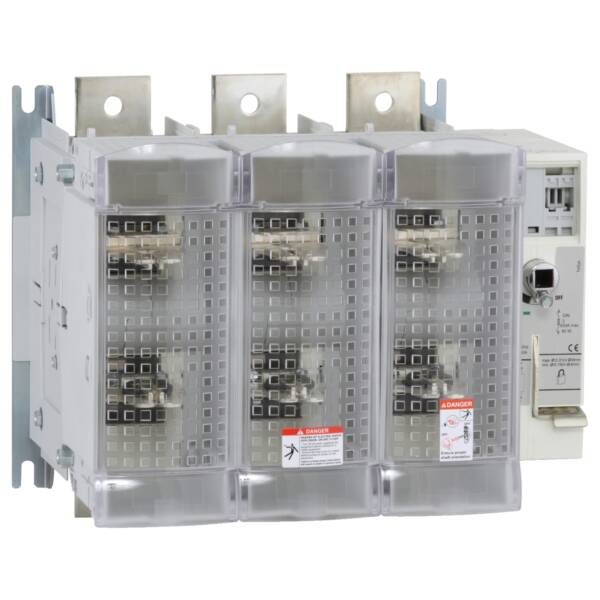

TeSys GS - switch-disconnector-fuse - 3 P - 630A - DIN 3 - Schneider Electric - GS2S3

Automation

TeSys GS fuse switch-disconnector, 3 poles (3P), 630A/1000V, to be used with DIN blade fuse links size 3 up to 630A, for motor applications up to 355kW@400V AC-23. To be equipped with a direct operating handle GS1AH104 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 3 blade fuse links without strickers DF2KA, DF2KN and with strickers DF4KA, DF4KN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £1,329.52 +VAT~~

Our Price £997.14 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
