GS2SB3

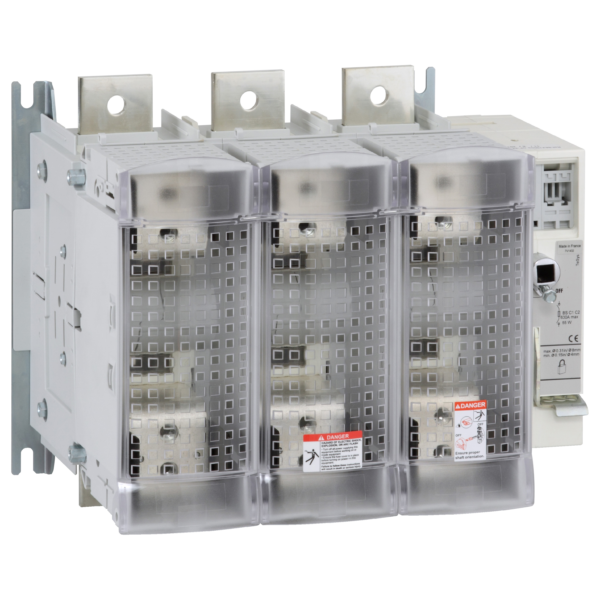

TeSys GS - switch-disconnector-fuse - 3 P - 630A - BS C1, C2 - Schneider Electric - GS2SB3

Automation

~~List Price £1,552.57 +VAT~~

Our Price £1,164.43 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys GS fuse switch-disconnector, 3 poles (3P), 630A/1000V, to be used with type BS fuse links size C1-C2 up to 630A, for motor applications up to 355kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP73 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys GS
Part No: GS2SB3
Weight (kg): 16.00 kg
Type: TeSys GS
