GS2QQB3

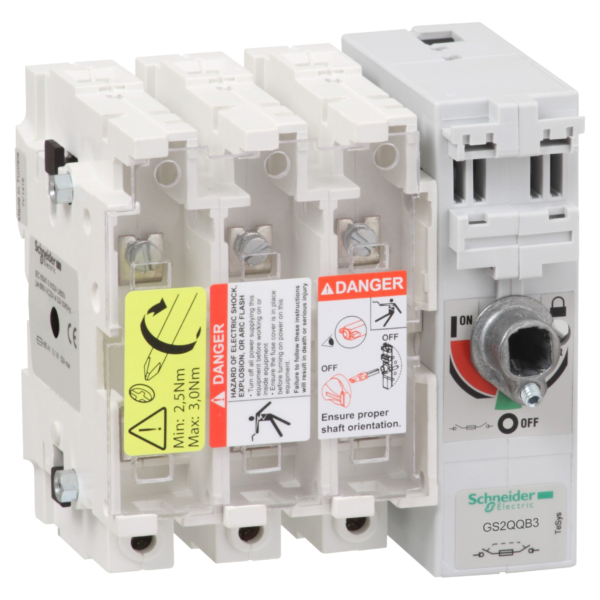

TeSys GS - switch-disconnector-fuse - 3 P - 400A - BS B1 B2 B3 B4 - Schneider Electric - GS2QQB3

Automation

TeSys GS fuse switch-disconnector, 3 poles (3P), 400A/800V, to be used with type BS fuse links size B1-B4 up to 400A, for motor applications up to 220kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £736.82 +VAT~~

Our Price £552.62 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
