GS2DB3

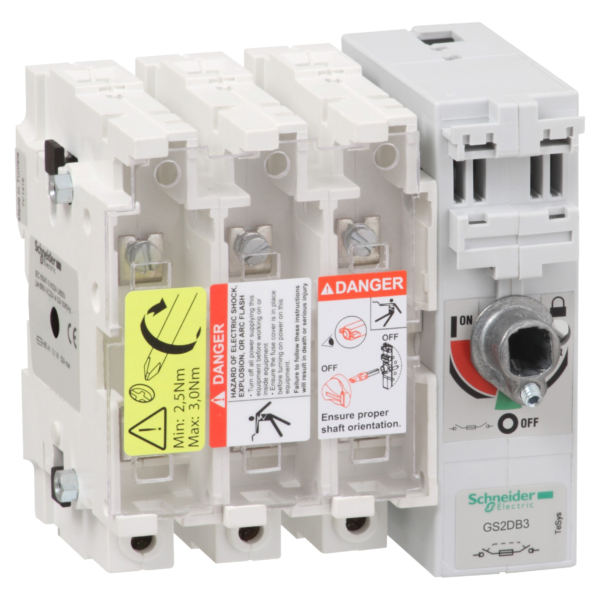

TeSys GS - switch-disconnector-fuse - 3 P - 32A - BS A1 - Schneider Electric - GS2DB3

Automation

TeSys GS fuse switch-disconnector, 3 poles (3P), 32A/800V, to be used with type BS fuse links size A1 up to 32A, for motor applications up to 15kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 80kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £82.70 +VAT~~

Our Price £62.03 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
