GS2MMB3

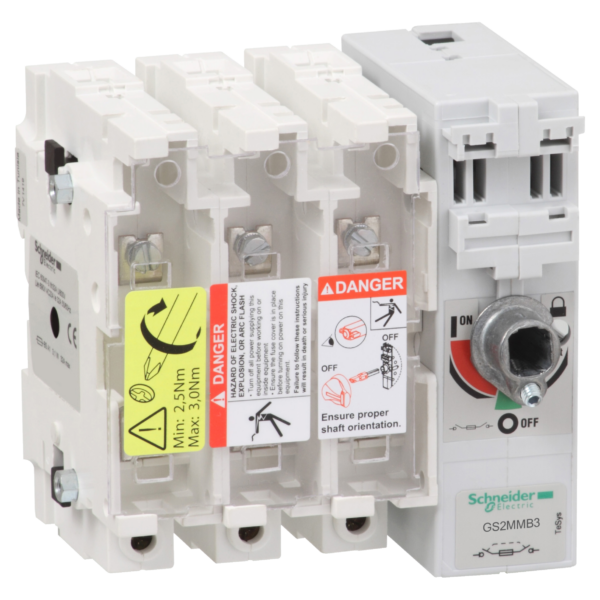

TeSys GS - switch-disconnector-fuse - 3 P - 200A - BS B1, B2 - Schneider Electric - GS2MMB3

Automation

~~List Price £441.09 +VAT~~

Our Price £330.82 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys GS fuse switch-disconnector, 3 poles (3P), 200A/750V, to be used with type BS fuse links size B1-B2 up to 200A, for motor applications up to 100kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys GS
Part No: GS2MMB3
Weight (kg): 3.20 kg
Type: TeSys GS
