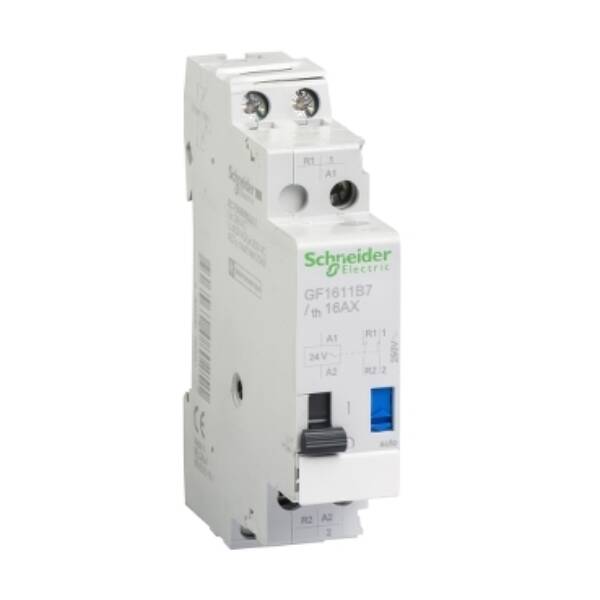

TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 24 V AC 50/60 Hz coil - Schneider Electric - GF1611B7

TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 24 V AC 50/60 Hz coil - Schneider Electric - GF1611B7

GF1611B7

TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 24 V AC 50/60 Hz coil - Schneider Electric - GF1611B7

Control

~~List Price £51.32 +VAT~~

Our Price £38.49 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Impulse relay designed for TeSys GF. Rated Current 16A, 2P. The rated operational voltage is 150V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. Rated Operational Voltage 250 V AC, 50/60 Hz AC-1. Impulse relay with control voltage of 24 V AC, 50/60 Hz.

Brand: Schneider Electric
Range: TeSys GC & GY
Part No: GF1611B7
Weight (kg): 0.12 kg
Type: TeSys GC & GY
Suitable for manual operation: TRUE
Frequency control voltage 1: 50…60 Hertz
Built-in depth: 64
Rated switch current: 16
Max. load fluorescent lamp (parallel compensated): 920
Supply voltage: 0…250 Volt
Voltage type (supply voltage): AC
Max. incandescent lamp load: 1600
Max. load fluorescent lamp: 1260
Width in number of modular spacings: 1
Max. load fluorescent lamp (Duo circuit): 2000
Mounting method: DIN rail
Control voltage 1: 24 Volt
Type of control voltage 1: AC
Max. switching current (cos phi = 0.6): 16
Number of contacts as normally open contact: 1
Function: Mechanical switch
Number of contacts as normally closed contact: 1

Datasheet for GF1611B7 - TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 24 V AC 50/60 Hz coil - Schneider Electric - GF1611B7

Download
