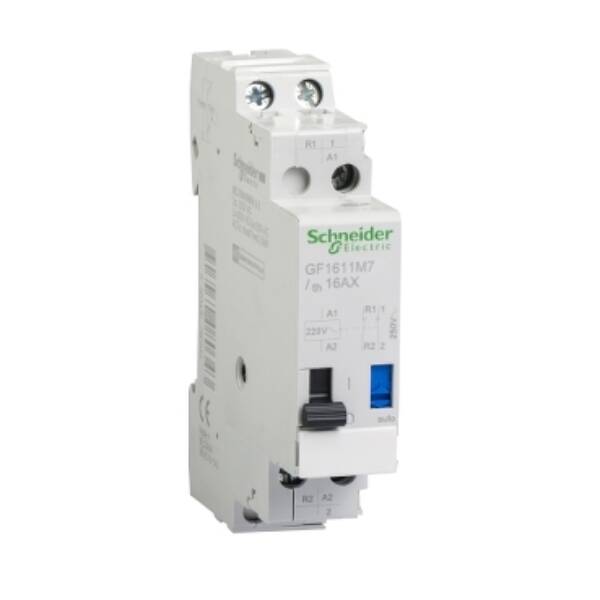

TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 220 V AC 50/60 Hz coil - Schneider Electric - GF1611M7
TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 220 V AC 50/60 Hz coil - Schneider Electric - GF1611M7

GF1611M7

TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 220 V AC 50/60 Hz coil - Schneider Electric - GF1611M7

Control

List Price £48.88 +VAT

Our Price £36.66 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
Impulse relay designed for TeSys GF. Rated Current 16A, 2P. with contact composition 1 NO + 1 NC. Rated Operational Voltage 250VAC, 50/60 Hz AC-1. Impulse relay with control voltage of 220VAC, 50/60 Hz.
Brand
Schneider Electric
Range
TeSys GC & GY
Part No
GF1611M7
Weight (kg)
0.11 kg
Type
TeSys GC & GY
craft\elements\db\ElementQuery
50…60 Hz
craft\elements\db\ElementQuery
64
Rated switch current
16
Max. load fluorescent lamp (parallel compensated)
920
craft\elements\db\ElementQuery
AC
craft\elements\db\ElementQuery
1600
craft\elements\db\ElementQuery
0…250 V
craft\elements\db\ElementQuery
1
Max. load fluorescent lamp
1260
Max. load fluorescent lamp (Duo circuit)
2000
craft\elements\db\ElementQuery
DIN rail
craft\elements\db\ElementQuery
220 V
craft\elements\db\ElementQuery
AC
Max. switching current (cos phi = 0.6)
16
Number of contacts as normally open contact
1
Manual operation possible
TRUE
craft\elements\db\ElementQuery
Mechanical switch
Number of contacts as normally closed contact
1

Datasheet for GF1611M7 - TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 220 V AC 50/60 Hz coil - Schneider Electric - GF1611M7
