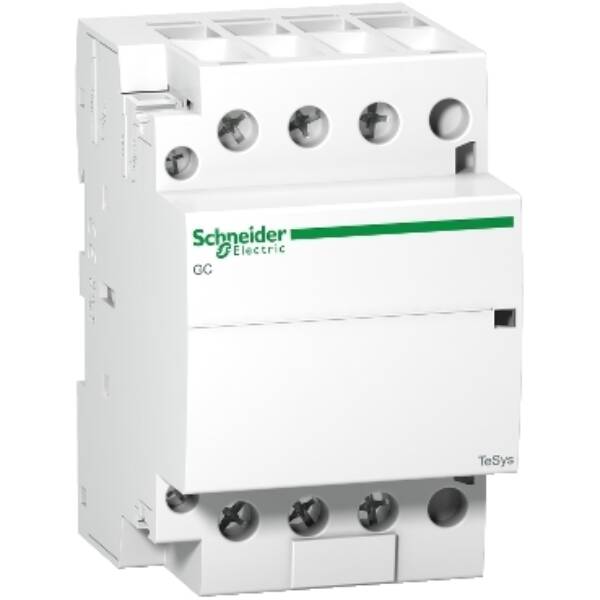

TeSys GC - modular contactor - 63 A - 3 NO - coil 220...240 V AC - Schneider Electric - GC6330M5
TeSys GC - modular contactor - 63 A - 3 NO - coil 220...240 V AC - Schneider Electric - GC6330M5

GC6330M5

TeSys GC - modular contactor - 63 A - 3 NO - coil 220...240 V AC - Schneider Electric - GC6330M5

Control

List Price £147.87 +VAT

Our Price £110.90 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys GC modular contactor, 3 poles (3NO), 63A/415V AC-7a (heating) and 25A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 4 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).
Brand
Schneider Electric
Range
TeSys GC & GY
Part No
GC6330M5
Weight (kg)
0.31 kg
Type
TeSys GC & GY
Built-in depth
62.5
Max. load fluorescent lamp (parallel compensated)
2200
Max. incandescent lamp load
8000
Rated excitation voltage
220…240 V
Max. load fluorescent lamp
3500
Number of modular spacings
3
Max. load fluorescent lamp (Duo circuit)
4500
Rated operation current
63
Utility category
7
Rated operating voltage
0…415 V
Number of contacts as normally open contact
3
Slider for hand switch
FALSE
Additional equipment possible
TRUE
Voltage type (operating voltage)
AC
Voltage type (excitation voltage)
AC
Degree of protection (IP)
IP20

Datasheet for GC6330M5 - TeSys GC - modular contactor - 63 A - 3 NO - coil 220...240 V AC - Schneider Electric - GC6330M5
