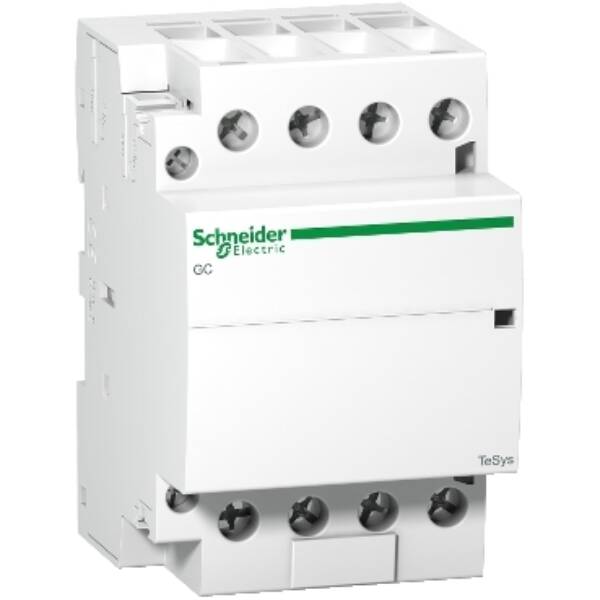

TeSys GC - modular contactor - 40 A - 4 NC - coil 220...240 V AC - Schneider Electric - GC4004M5

TeSys GC - modular contactor - 40 A - 4 NC - coil 220...240 V AC - Schneider Electric - GC4004M5

GC4004M5

TeSys GC - modular contactor - 40 A - 4 NC - coil 220...240 V AC - Schneider Electric - GC4004M5

Control

~~List Price £125.32 +VAT~~

Our Price £93.99 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys GC modular contactor, 4 poles (4NC), 40A/415V AC-7a (heating) and 15A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 4 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).

Brand: Schneider Electric
Range: TeSys GC & GY
Part No: GC4004M5
Weight (kg): 0.34 kg
Type: TeSys GC & GY
Built-in depth: 62.5
Max. load fluorescent lamp (parallel compensated): 1600
Max. incandescent lamp load: 5100
Rated excitation voltage: 220…240 V
Max. load fluorescent lamp: 2200
Number of modular spacings: 6
Max. load fluorescent lamp (Duo circuit): 1800
Rated operation current: 40
Utility category: 7
Rated operating voltage: 0…415 V
Slider for hand switch: FALSE
Additional equipment possible: TRUE
Voltage type (operating voltage): AC
Voltage type (excitation voltage): AC
Degree of protection (IP): IP20
Number of contacts as normally closed contact: 4

Datasheet for GC4004M5 - TeSys GC - modular contactor - 40 A - 4 NC - coil 220...240 V AC - Schneider Electric - GC4004M5

Download
