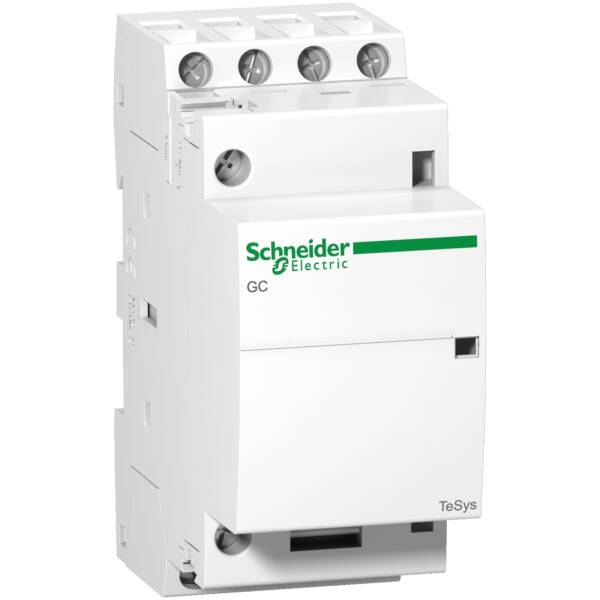

TeSys GC - modular contactor - 16 A - 4 NO - coil 220...240 V AC - Schneider Electric - GC1640M5
TeSys GC - modular contactor - 16 A - 4 NO - coil 220...240 V AC - Schneider Electric - GC1640M5

GC1640M5

TeSys GC - modular contactor - 16 A - 4 NO - coil 220...240 V AC - Schneider Electric - GC1640M5

Control

List Price £50.13 +VAT

Our Price £37.60 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys GC modular contactor, 4 poles (4NO), 16A/415V AC-7a (heating) and 5A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 6 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).
Brand
Schneider Electric
Range
TeSys GC & GY
Part No
GC1640M5
Weight (kg)
0.20 kg
Type
TeSys GC & GY
Built-in depth
62.5
Max. load fluorescent lamp (parallel compensated)
600
Max. incandescent lamp load
1800
Rated excitation voltage
220…240 V
Max. load fluorescent lamp
650
Number of modular spacings
4
Max. load fluorescent lamp (Duo circuit)
800
Rated operation current
16
Utility category
7
Rated operating voltage
0…415 V
Number of contacts as normally open contact
4
Slider for hand switch
FALSE
Additional equipment possible
TRUE
Voltage type (operating voltage)
AC
Voltage type (excitation voltage)
AC
Degree of protection (IP)
IP20

Datasheet for GC1640M5 - TeSys GC - modular contactor - 16 A - 4 NO - coil 220...240 V AC - Schneider Electric - GC1640M5
