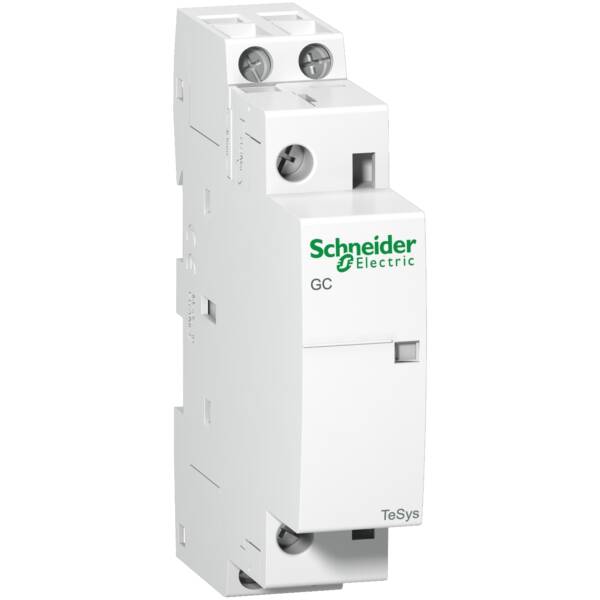

TeSys GC - modular contactor - 16 A - 2 NO - coil 110 V AC - Schneider Electric - GC1620F5
TeSys GC - modular contactor - 16 A - 2 NO - coil 110 V AC - Schneider Electric - GC1620F5

GC1620F5

TeSys GC - modular contactor - 16 A - 2 NO - coil 110 V AC - Schneider Electric - GC1620F5

Control

List Price £42.86 +VAT

Our Price £32.15 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys GC modular contactor, 2 poles (2NO), 16A/250V AC-7a (heating) and 5A/250V AC-7b (motor control), for household applications. Control voltage110V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).
Brand
Schneider Electric
Range
TeSys GC & GY
Part No
GC1620F5
Weight (kg)
0.11 kg
Type
TeSys GC & GY
Built-in depth
62.5
Max. load fluorescent lamp (parallel compensated)
550
Max. incandescent lamp load
2000
Rated excitation voltage
110 V
Max. load fluorescent lamp
770
Number of modular spacings
1
Max. load fluorescent lamp (Duo circuit)
1200
Rated operation current
16
Utility category
7
Rated operating voltage
0…250 V
Number of contacts as normally open contact
2
Slider for hand switch
FALSE
Additional equipment possible
TRUE
Voltage type (operating voltage)
AC
Voltage type (excitation voltage)
AC
Degree of protection (IP)
IP20

Datasheet for GC1620F5 - TeSys GC - modular contactor - 16 A - 2 NO - coil 110 V AC - Schneider Electric - GC1620F5
