TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 110 V AC coil - Schneider Electric - LC2D80F7

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 110 V AC coil - Schneider Electric - LC2D80F7

LC2D80F7

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 110 V AC coil - Schneider Electric - LC2D80F7

Control

~~List Price £828.21 +VAT~~

Our Price £621.16 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

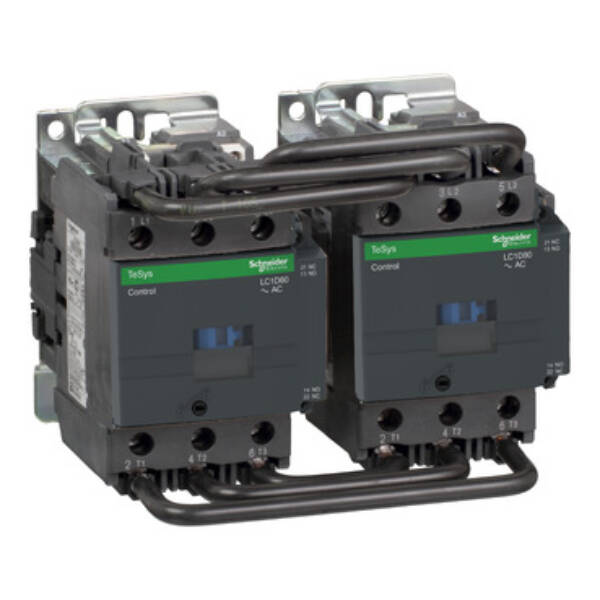

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides 110V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (182mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC2D80F7
Weight (kg): 3.73 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 110 V
Rated operation power NEMA: 44.8
Rated control supply voltage Us at AC 60HZ: 110 V
Rated operation current Ie at AC-3, 400 V: 80
Voltage type for actuating: AC
Degree of protection (IP): IP20
Function: Reversing safety
Rated operation power at AC-3, 400 V: 37
Degree of protection (NEMA): Other

Datasheet for LC2D80F7 - TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 110 V AC coil - Schneider Electric - LC2D80F7

Download
