TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 115 V AC coil - Schneider Electric - LC2D65AFE7
TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 115 V AC coil - Schneider Electric - LC2D65AFE7

LC2D65AFE7

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 115 V AC coil - Schneider Electric - LC2D65AFE7

Control

List Price £763.14 +VAT

Our Price £572.36 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

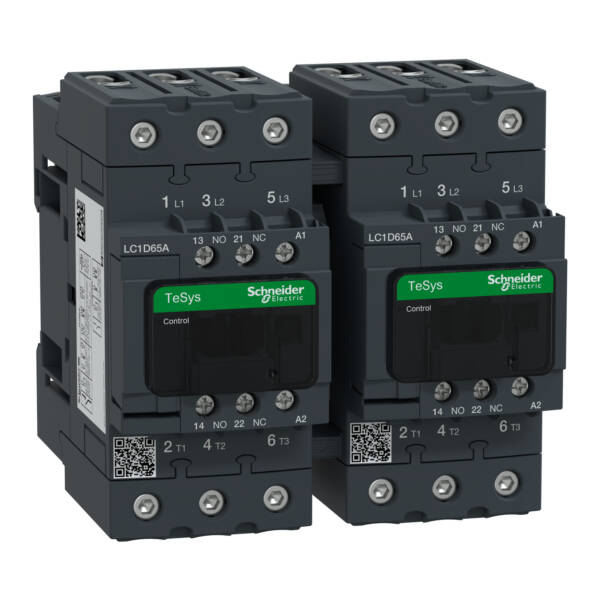

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 65A/440V AC-3/3e (30kW@400V). It is provided with 115V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), with DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC2D65AFE7
Weight (kg)
2.06 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
115 V
Rated control supply voltage Us at AC 60HZ
115 V
Rated operation power NEMA
29.8
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
65
Function
Reversing safety
Degree of protection (IP)
IP20
Rated operation power at AC-3, 400 V
30
Degree of protection (NEMA)
Other

Datasheet for LC2D65AFE7 - TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 115 V AC coil - Schneider Electric - LC2D65AFE7

Download
