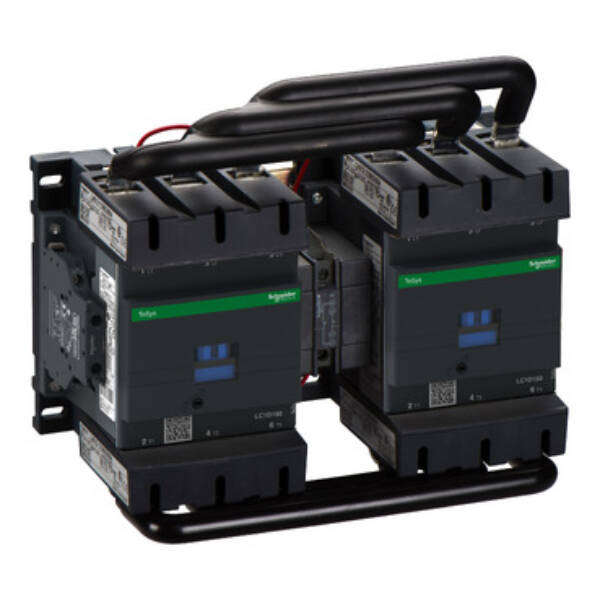

LC2D150F7

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 110 V AC coil - Schneider Electric - LC2D150F7

Automation

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). It provides 110V 50/60Hz AC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (266mm width), mounting on 2 DIN-rails or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £1,292.01 +VAT~~

Our Price £969.01 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
