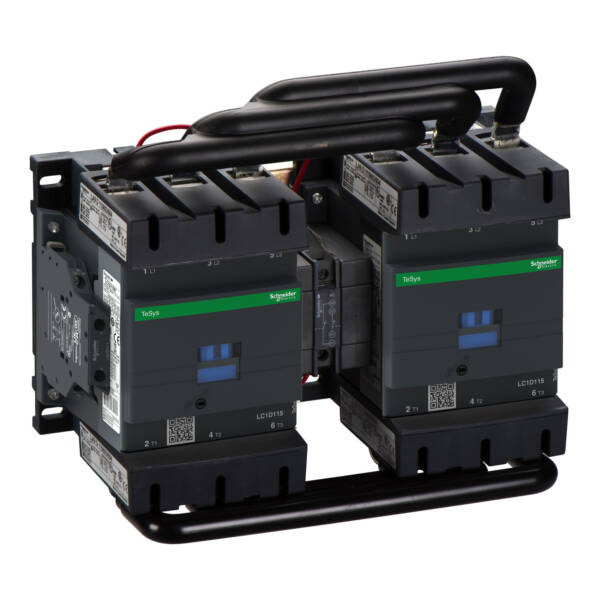

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 230 V AC coil - Schneider Electric - LC2D115P7
TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 230 V AC coil - Schneider Electric - LC2D115P7

LC2D115P7

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 230 V AC coil - Schneider Electric - LC2D115P7

Control

List Price £1,074.31 +VAT

Our Price £805.73 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides 230V 50/60Hz AC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (266mm width), mounting on 2 DIN-rails or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC2D115P7
Weight (kg)
7.10 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
230 V
Rated operation power NEMA
55.9
Rated control supply voltage Us at AC 60HZ
230 V
Rated operation current Ie at AC-3, 400 V
115
Voltage type for actuating
AC
Function
Reversing safety
Degree of protection (IP)
IP20
Rated operation power at AC-3, 400 V
55
Degree of protection (NEMA)
Other

Datasheet for LC2D115P7 - TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 230 V AC coil - Schneider Electric - LC2D115P7
