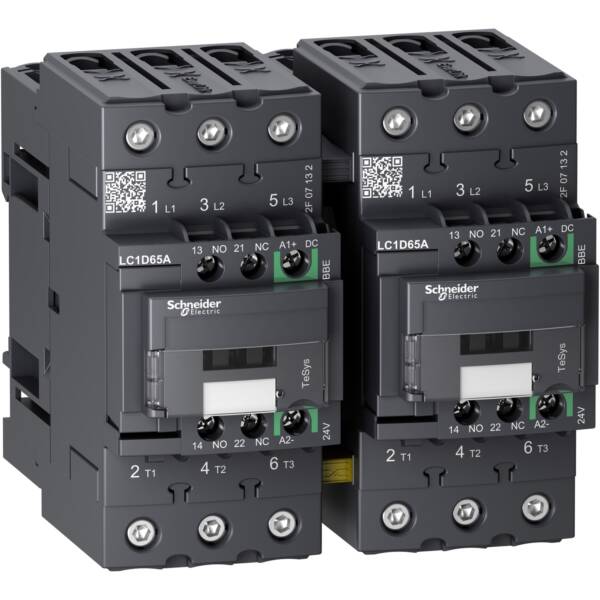

TeSys D reversing contactor - 3P - <= 440 V - 65 A AC-3 - 24 V DC coil - Schneider Electric - LC2D65ABBE
TeSys D reversing contactor - 3P - <= 440 V - 65 A AC-3 - 24 V DC coil - Schneider Electric - LC2D65ABBE

LC2D65ABBE

TeSys D reversing contactor - 3P - <= 440 V - 65 A AC-3 - 24 V DC coil - Schneider Electric - LC2D65ABBE

Control

List Price £976.10 +VAT

Our Price £732.08 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 65A/440V AC-3/3e (30kW@400V). It provides low consumption 24V DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), with DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC2D65ABBE
Weight (kg)
2.36 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated operation power NEMA
29.8
Rated control supply voltage Us at DC
17…30 V
craft\elements\db\ElementQuery
DC
Rated operation current Ie at AC-3, 400 V
65
Degree of protection (IP)
IP20
craft\elements\db\ElementQuery
Reversing safety
Rated operation power at AC-3, 400 V
30
craft\elements\db\ElementQuery
Other

Datasheet for LC2D65ABBE - TeSys D reversing contactor - 3P - <= 440 V - 65 A AC-3 - 24 V DC coil - Schneider Electric - LC2D65ABBE

Download
