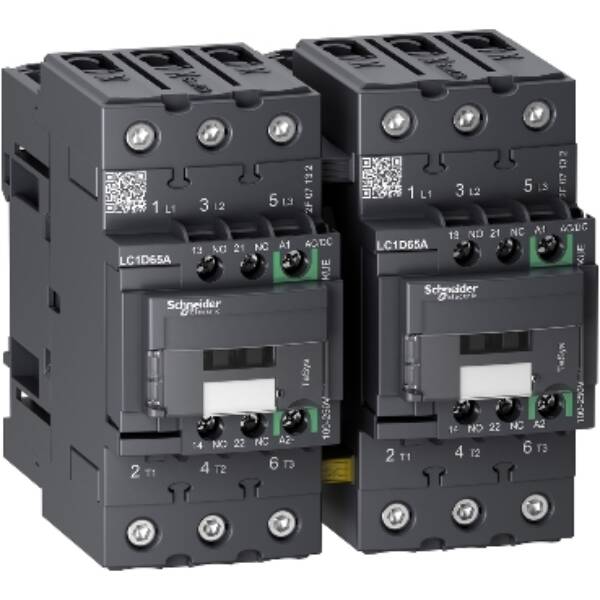

TeSys D reversing contactor - 3P - <= 440 V - 65 A AC-3 - 100...250 V AC/DC coil - Schneider Electric - LC2D65AKUE
TeSys D reversing contactor - 3P - <= 440 V - 65 A AC-3 - 100...250 V AC/DC coil - Schneider Electric - LC2D65AKUE

LC2D65AKUE

TeSys D reversing contactor - 3P - <= 440 V - 65 A AC-3 - 100...250 V AC/DC coil - Schneider Electric - LC2D65AKUE

Control

List Price £1,036.79 +VAT

Our Price £777.59 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 65A/440V AC-3/3e (30kW@400V). It provides low consumption 100-250V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC2D65AKUE
Weight (kg)
2.35 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
100…250 V
Rated control supply voltage Us at AC 60HZ
100…250 V
Rated operation power NEMA
29.8
Rated control supply voltage Us at DC
100…250 V
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-3, 400 V
65
Function
Reversing safety
Degree of protection (IP)
IP20
Rated operation power at AC-3, 400 V
30
Degree of protection (NEMA)
Other

Datasheet for LC2D65AKUE - TeSys D reversing contactor - 3P - <= 440 V - 65 A AC-3 - 100...250 V AC/DC coil - Schneider Electric - LC2D65AKUE

Download
