LC2D40ABBE

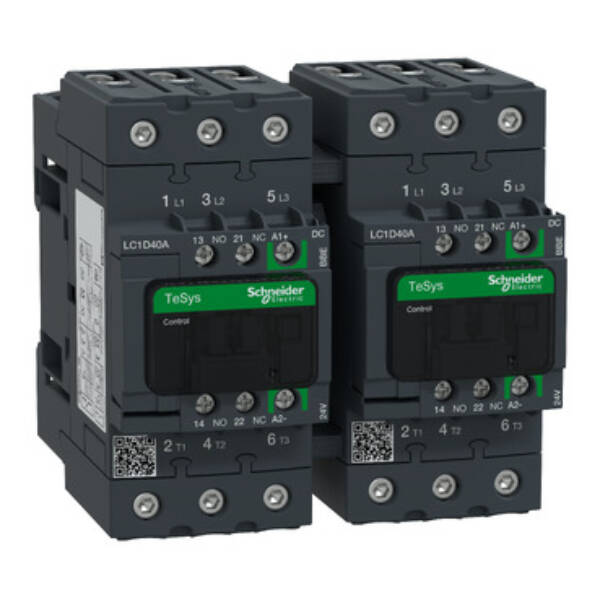

TeSys D reversing contactor - 3P - <= 440 V - 40 A AC-3 - 24 V DC coil - Schneider Electric - LC2D40ABBE

Control

~~List Price £579.75 +VAT~~

Our Price £434.81 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3/3e (18.5kW@400V). It provides low consumption 24V DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC2D40ABBE
Weight (kg): 2.37 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated operation power at AC-3, 400 V: 18.5
Type of electrical connection for auxiliary- and control current circuit: Screw connection
Voltage type (operating voltage): DC
Rated operation power NEMA: 22.4
Rated operation current Ie at AC-1, 400 V: 60
Voltage type for actuating: DC
Height: 122
Rated operation current Ie at AC-3, 400 V: 40
Degree of protection (IP): IP20
Width: 119
Rail mounting possible: TRUE
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Depth: 120
Operating voltage DC: 440 Volt
Rated control supply voltage DC: 17…30 Volt
Function: Reversing contactor
Degree of protection (NEMA): Other
