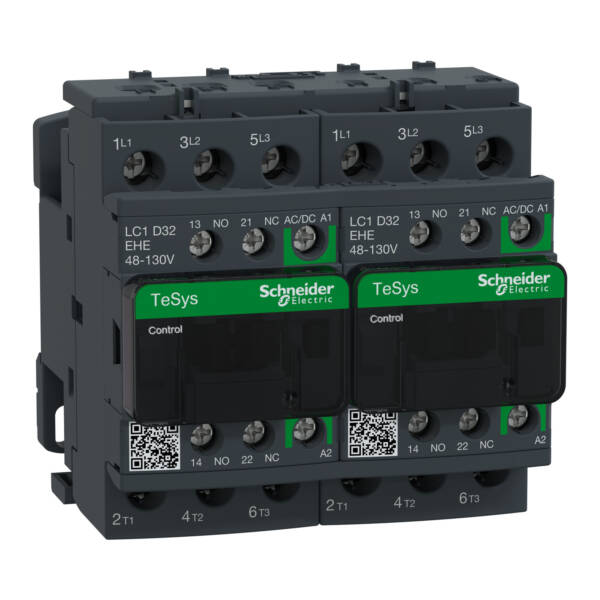

TeSys D reversing contactor - 3P - <= 440 V - 32 A AC-3 - 48...130 V AC/DC coil - Schneider Electric - LC2D32EHE
TeSys D reversing contactor - 3P - <= 440 V - 32 A AC-3 - 48...130 V AC/DC coil - Schneider Electric - LC2D32EHE

LC2D32EHE

TeSys D reversing contactor - 3P - <= 440 V - 32 A AC-3 - 48...130 V AC/DC coil - Schneider Electric - LC2D32EHE

Control

List Price £489.83 +VAT

Our Price £367.37 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 32A/440V AC-3/3e (15kW@400V). It provides low consumption 48-130V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC2D32EHE
Weight (kg)
0.98 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
48…130 V
craft\elements\db\ElementQuery
48…130 V
craft\elements\db\ElementQuery
14.9
Rated control supply voltage Us at DC
48…130 V
Rated operation current Ie at AC-3, 400 V
32
craft\elements\db\ElementQuery
AC/DC
Degree of protection (IP)
IP20
craft\elements\db\ElementQuery
Reversing safety
Rated operation power at AC-3, 400 V
15
craft\elements\db\ElementQuery
Other

Datasheet for LC2D32EHE - TeSys D reversing contactor - 3P - <= 440 V - 32 A AC-3 - 48...130 V AC/DC coil - Schneider Electric - LC2D32EHE

Download
