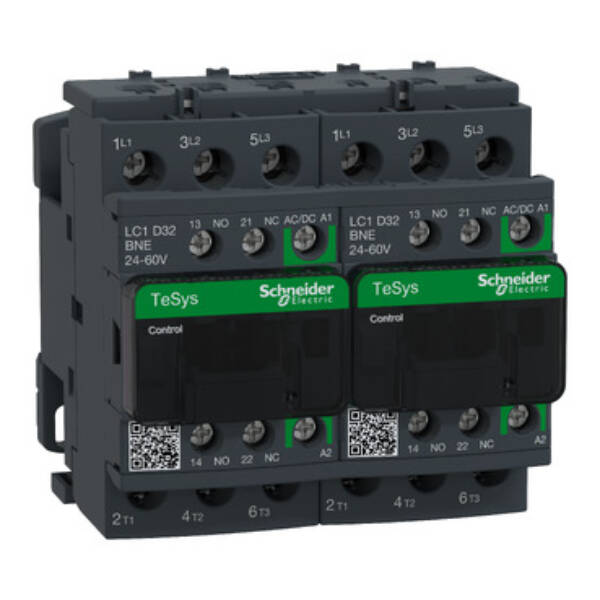

TeSys D reversing contactor - 3P - <= 440 V - 32 A AC-3 - 24...60 V AC/DC coil - Schneider Electric - LC2D32BNE

TeSys D reversing contactor - 3P - <= 440 V - 32 A AC-3 - 24...60 V AC/DC coil - Schneider Electric - LC2D32BNE

LC2D32BNE

TeSys D reversing contactor - 3P - <= 440 V - 32 A AC-3 - 24...60 V AC/DC coil - Schneider Electric - LC2D32BNE

Control

~~List Price £489.83 +VAT~~

Our Price £367.37 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 32A/440V AC-3/3e (15kW@400V). It provides low consumption 24-60V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC2D32BNE
Weight (kg): 1.03 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 24…60 V
Rated operation power NEMA: 14.9
Rated control supply voltage Us at AC 60HZ: 24…60 V
Rated control supply voltage Us at DC: 24…60 V
Voltage type for actuating: AC/DC
Rated operation current Ie at AC-3, 400 V: 32
Degree of protection (IP): IP20
Function: Reversing safety
Rated operation power at AC-3, 400 V: 15
Degree of protection (NEMA): Other

Datasheet for LC2D32BNE - TeSys D reversing contactor - 3P - <= 440 V - 32 A AC-3 - 24...60 V AC/DC coil - Schneider Electric - LC2D32BNE

Download
