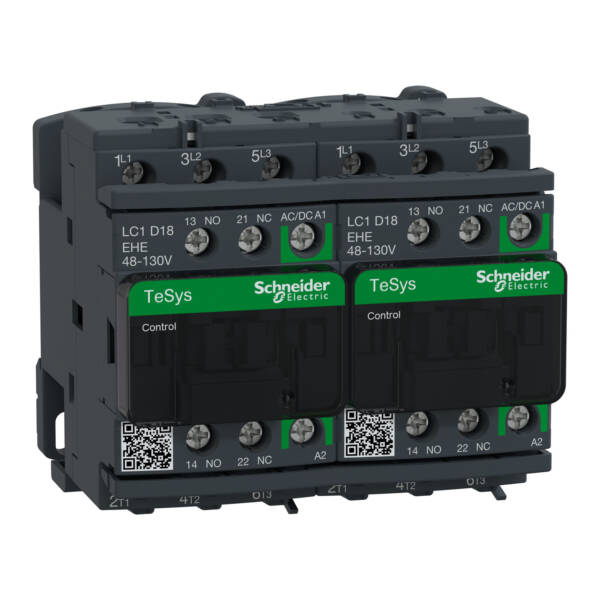

LC2D18EHE

TeSys D reversing contactor - 3P - <= 440 V - 18 A AC-3 - 48...130 V AC/DC coil - Schneider Electric - LC2D18EHE

Automation

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3 (7.5kW@400V). It provides low consumption 48-130V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £343.71 +VAT~~

Our Price £257.78 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days
