CAD32CD

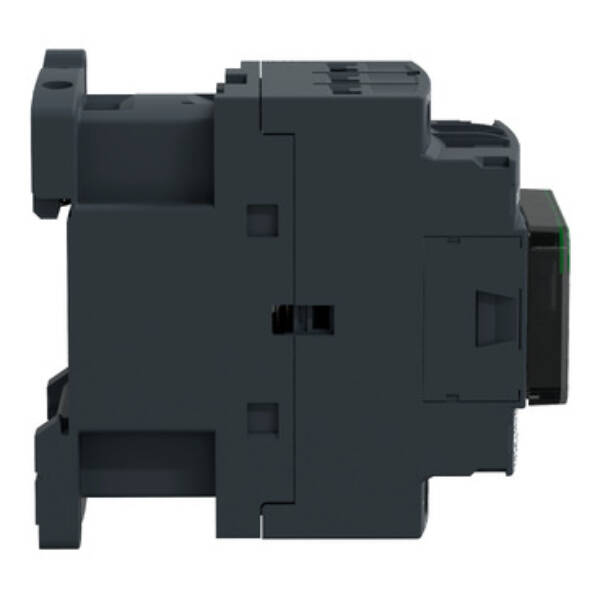

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 36 V DC standard coil - Schneider Electric - CAD32CD
Control
List Price £107.67
+VAT
Our Price £80.75
+VAT
SAVE 26% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 36V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), (RoHS/REACh).
Brand
Schneider Electric
Range
TeSys K, D, SK Control Relays
Part No
CAD32CD
Weight (kg)
0.54 kg
Type
TeSys K, D, SK Control Relays
Interface
FALSE
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as normally closed contact
2
With LED indication
FALSE
Number of auxiliary contacts as normally open contact
3
Mounting method
DIN-rail/screw
Rated operation current Ie, 400 V
10
Voltage type for actuating
DC
Rated control supply voltage Us at DC
36 V
Manual operation possible
FALSE
Datasheet for CAD32CD - TeSys D control relay - 3 NO + 2 NC - <= 690 V - 36 V DC standard coil - Schneider Electric - CAD32CD
Download
