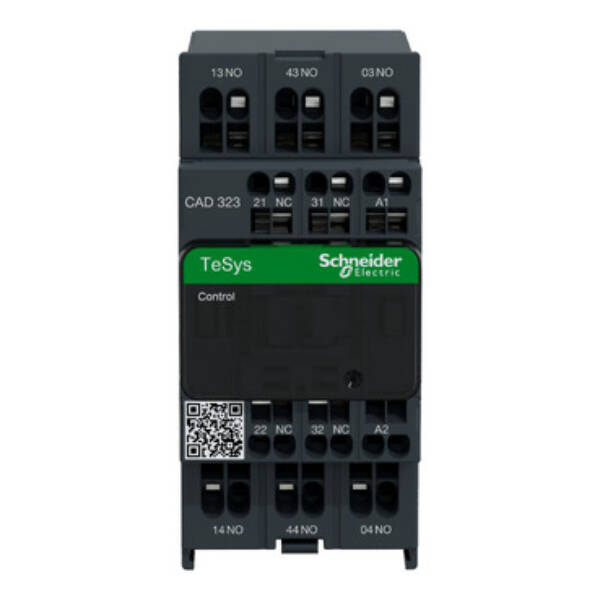

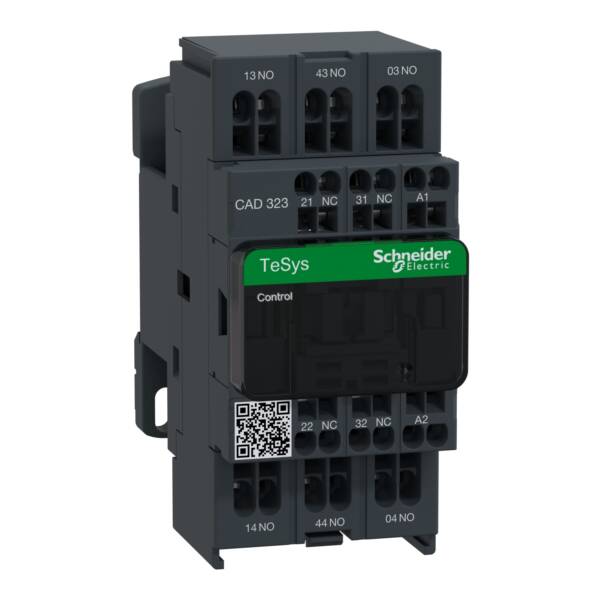

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 24 V AC standard coil - Schneider Electric - CAD323B7
TeSys D control relay - 3 NO + 2 NC - <= 690 V - 24 V AC standard coil - Schneider Electric - CAD323B7

CAD323B7

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 24 V AC standard coil - Schneider Electric - CAD323B7

Control

List Price £54.90 +VAT

Our Price £41.18 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V 50/60Hz AC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), (RoHS/REACh).
Brand
Schneider Electric
Range
TeSys K, D, SK Control Relays
Part No
CAD323B7
Weight (kg)
0.38 kg
Type
TeSys K, D, SK Control Relays
Rated control supply voltage Us at AC 50HZ
24 V
craft\elements\db\ElementQuery
24 V
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
Spring clamp connection
craft\elements\db\ElementQuery
2
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
3
craft\elements\db\ElementQuery
DIN-rail/screw
craft\elements\db\ElementQuery
10
craft\elements\db\ElementQuery
AC
craft\elements\db\ElementQuery
FALSE

Datasheet for CAD323B7 - TeSys D control relay - 3 NO + 2 NC - <= 690 V - 24 V AC standard coil - Schneider Electric - CAD323B7
