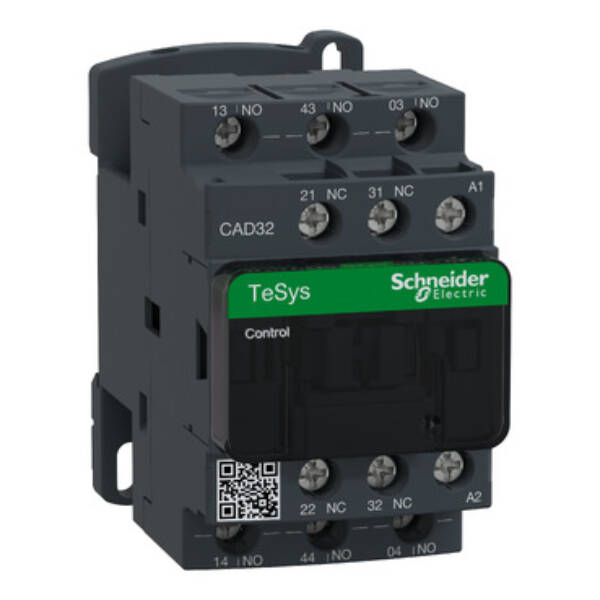

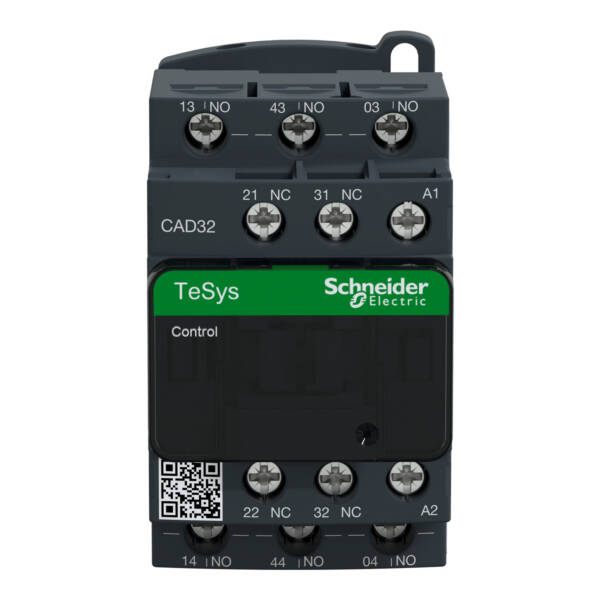

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V AC standard coil - Schneider Electric - CAD32F7
TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V AC standard coil - Schneider Electric - CAD32F7

CAD32F7

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V AC standard coil - Schneider Electric - CAD32F7

Control

List Price £41.41 +VAT

Our Price £31.06 +VAT

SAVE 25% OFF List Price
Fast Track Delivery Product
Get in touch
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys K, D, SK Control Relays
Part No
CAD32F7
Weight (kg)
0.35 kg
Type
TeSys K, D, SK Control Relays
Rated control supply voltage Us at AC 50HZ
110 V
Rated control supply voltage Us at AC 60HZ
110 V
Interface
FALSE
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as normally closed contact
2
With LED indication
FALSE
Number of auxiliary contacts as normally open contact
3
Mounting method
DIN-rail/screw
Rated operation current Ie, 400 V
10
Voltage type for actuating
AC
Manual operation possible
FALSE

Datasheet for CAD32F7 - TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V AC standard coil - Schneider Electric - CAD32F7
