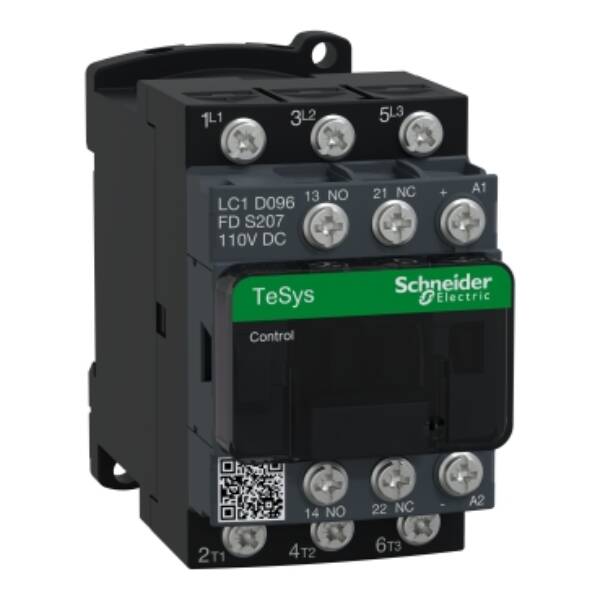

TeSys D contactor S207 - 3P (3NO) AC-3 9A <=440V - coil 110V DC - Schneider Electric - LC1D096FDS207
TeSys D contactor S207 - 3P (3NO) AC-3 9A <=440V - coil 110V DC - Schneider Electric - LC1D096FDS207

LC1D096FDS207

TeSys D contactor S207 - 3P (3NO) AC-3 9A <=440V - coil 110V DC - Schneider Electric - LC1D096FDS207

Control

List Price £99.39 +VAT

Our Price £74.54 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"TeSys Deca contactor, 3 poles (3NO), for motor control in railway applications up to 9A/690V AC-3/3e (4kW@400V)." It provides a 110V DC standard coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts, connection by ring-lugs screw terminals. It procures high reliability and durability with 3600 cycles/hour operating rates under 60°C environment temperature. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC, EAC) and compliant with the railway European standard EN 45545 R22HL3, Sustainability compliant.
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D096FDS207
Weight (kg)
0.50 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Other
Rated operation power at AC-3, 400 V
4
Number of main contacts as normally open contact
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
25
Rated operation current Ie at AC-3, 400 V
9
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
6
Rated control supply voltage Us at DC
110 V
Rated operation power at AC-4, 400 V
2.2

Datasheet for LC1D096FDS207 - TeSys D contactor S207 - 3P (3NO) AC-3 9A <=440V - coil 110V DC - Schneider Electric - LC1D096FDS207
