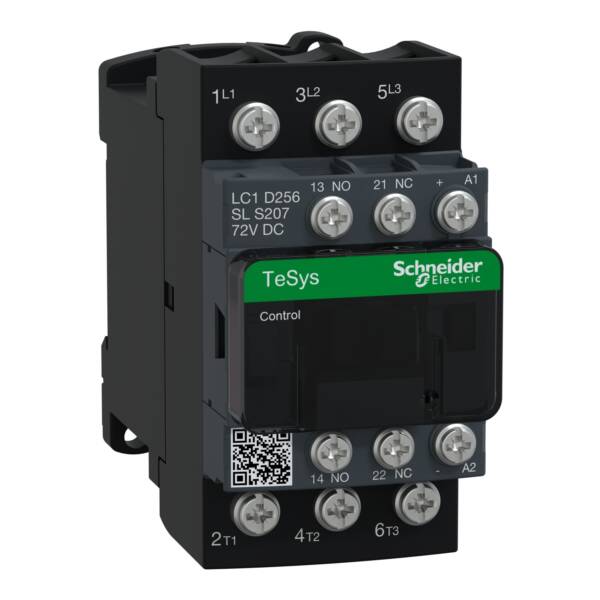

TeSys D contactor S207 - 3P (3NO) AC-3 25A <=440V - coil 72V DC low - Schneider Electric - LC1D256SLS207
TeSys D contactor S207 - 3P (3NO) AC-3 25A <=440V - coil 72V DC low - Schneider Electric - LC1D256SLS207

LC1D256SLS207

TeSys D contactor S207 - 3P (3NO) AC-3 25A <=440V - coil 72V DC low - Schneider Electric - LC1D256SLS207

Control

List Price £147.90 +VAT

Our Price £110.93 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
"TeSys Deca contactor, 3 poles (3NO), for motor control in railway applications up to 25A/690V AC-3/3e (11kW@400V)." It provides a low consumption 72V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by lugs-ring terminals. It procures 3600 cyc/h for operating rate and environment temperature under 60°C. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC, EAC) and compliant with the railway European standard EN 45545 R22HL3, Sustainability compliant.
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D256SLS207
Weight (kg)
0.59 kg
Type
TeSys Deca contactors

Datasheet for LC1D256SLS207 - TeSys D contactor S207 - 3P (3NO) AC-3 25A <=440V - coil 72V DC low - Schneider Electric - LC1D256SLS207
