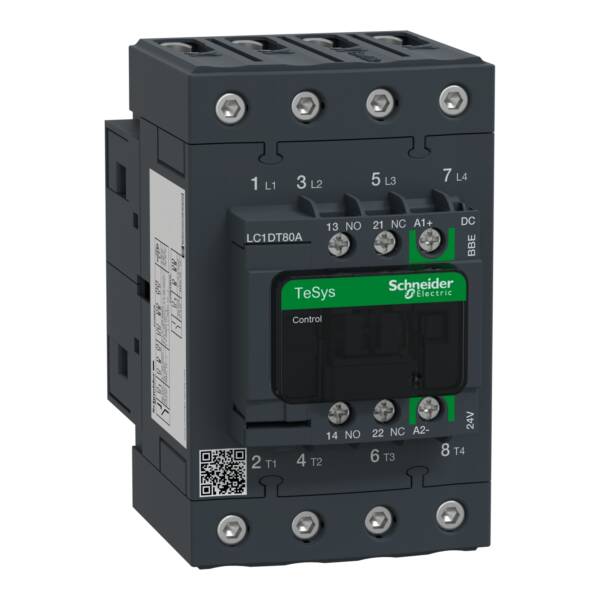

TeSys D contactor 4P 80A AC-1 up to 440V coil 24V DC Everlink - Schneider Electric - LC1DT80ABBE

TeSys D contactor 4P 80A AC-1 up to 440V coil 24V DC Everlink - Schneider Electric - LC1DT80ABBE

LC1DT80ABBE

TeSys D contactor 4P 80A AC-1 up to 440V coil 24V DC Everlink - Schneider Electric - LC1DT80ABBE

Control

~~List Price £524.14 +VAT~~

Our Price £393.11 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 80A/690V AC-1. It provides a low consumption 24V DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1DT80ABBE
Weight (kg): 1.22 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 70
Number of normally open contacts as main contact: 4
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: TRUE
Depth: 120
Rated operation current Ie at AC-1, 400 V: 80
Rated control supply voltage DC: 24 Volt
Voltage type for actuating: DC
Height: 122

Datasheet for LC1DT80ABBE - TeSys D contactor 4P 80A AC-1 up to 440V coil 24V DC Everlink - Schneider Electric - LC1DT80ABBE

Download
