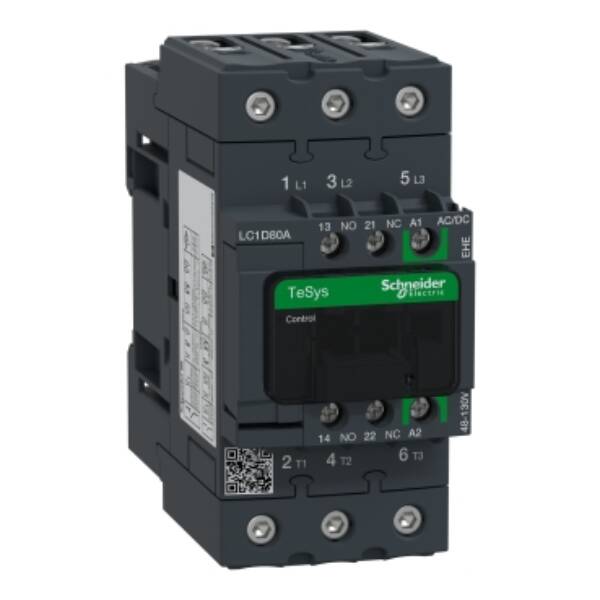

TeSys D contactor 3P 66A AC-3 up to 440V coil 48-130V AC/DC EverLink - Schneider Electric - LC1D80AEHE
TeSys D contactor 3P 66A AC-3 up to 440V coil 48-130V AC/DC EverLink - Schneider Electric - LC1D80AEHE

LC1D80AEHE

TeSys D contactor 3P 66A AC-3 up to 440V coil 48-130V AC/DC EverLink - Schneider Electric - LC1D80AEHE

Control

List Price £453.15 +VAT

Our Price £339.86 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys D contactor, 3 poles (3NO), for motor control applications up to 80A/690V AC-3 (37kW@400V). It provides a low consumption 100-250V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by lugs-ring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D80AEHE
Weight (kg)
1.07 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
48…130 V
craft\elements\db\ElementQuery
48…130 V
Rated operation power at AC-3, 400 V
37
Number of main contacts as normally open contact
3
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
80
Rated operation current Ie at AC-3, 400 V
66
craft\elements\db\ElementQuery
AC/DC
craft\elements\db\ElementQuery
25
Rated control supply voltage Us at DC
48…130 V
craft\elements\db\ElementQuery
11

Datasheet for LC1D80AEHE - TeSys D contactor 3P 66A AC-3 up to 440V coil 48-130V AC/DC EverLink - Schneider Electric - LC1D80AEHE

Download
