Brand
-
Schneider Electric
-
Range
-

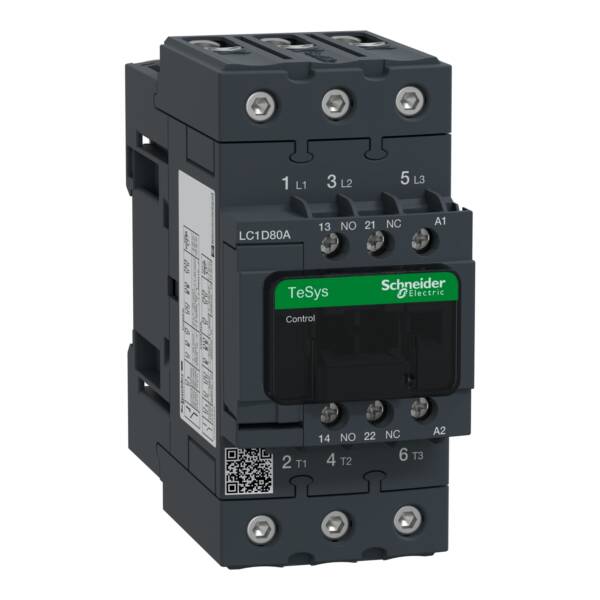

TeSys Deca contactors
-
Part No
-
LC1D80AG7
-
Weight (kg)
-
0.91 kg
-
Type
-
TeSys Deca contactors
-
Type of electrical connection of main circuit
-
Screw connection
-
Width
-
55
-
Rated control supply voltage AC 60 Hz
-
120 Volt
-
Rated operation power at AC-3, 400 V
-
37
-
Number of normally open contacts as main contact
-
3
-
Number of auxiliary contacts as normally closed contact
-
1
-
Number of auxiliary contacts as normally open contact
-
1
-
Modular version
-
TRUE
-
Operating voltage AC 50 Hz
-
440 Volt
-
Depth
-
120
-
Operating voltage AC 60 Hz
-
440 Volt
-
Rated operation power NEMA
-
29.8
-
Rated operation current Ie at AC-1, 400 V
-
80
-
Height
-
122
-
Rated operation current Ie at AC-4, 400 V
-
65
-
Rated operation current Ie at AC-3, 400 V
-
66
-
Voltage type for actuating
-
AC
-
Rated operation power at AC-4, 400 V
-
30
