TeSys D contactor 3P 65A AC-3 up to 440V coil 100-250V AC/DC ring-lugs - Schneider Electric - LC1D65A6KUE
TeSys D contactor 3P 65A AC-3 up to 440V coil 100-250V AC/DC ring-lugs - Schneider Electric - LC1D65A6KUE

LC1D65A6KUE

TeSys D contactor 3P 65A AC-3 up to 440V coil 100-250V AC/DC ring-lugs - Schneider Electric - LC1D65A6KUE

Control

List Price £384.53 +VAT

Our Price £288.40 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

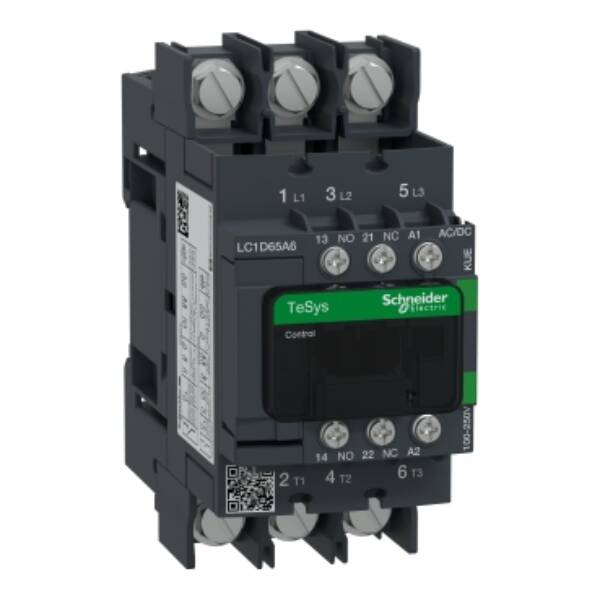

TeSys D contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3/3e (30kW@400V). It provides a low consumption 100-250V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by lugs-ring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D65A6KUE
Weight (kg)
0.91 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Width
55
Rated control supply voltage AC 50 Hz
100…250 Volt
Rated control supply voltage AC 60 Hz
100…250 Volt
Rated operation power at AC-3, 400 V
30
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
TRUE
Operating voltage AC 50 Hz
440 Volt
Depth
120
Operating voltage AC 60 Hz
440 Volt
Rated operation power NEMA
29.8
Rated operation current Ie at AC-1, 400 V
80
Rated control supply voltage DC
100…250 Volt
Voltage type for actuating
AC/DC
Height
122
Rated operation current Ie at AC-4, 400 V
65
Rated operation current Ie at AC-3, 400 V
65
Rated operation power at AC-4, 400 V
30

Datasheet for LC1D65A6KUE - TeSys D contactor 3P 65A AC-3 up to 440V coil 100-250V AC/DC ring-lugs - Schneider Electric - LC1D65A6KUE
