Brand
-
Schneider Electric
-
Range
-
TeSys Deca contactors
-
Part No
-

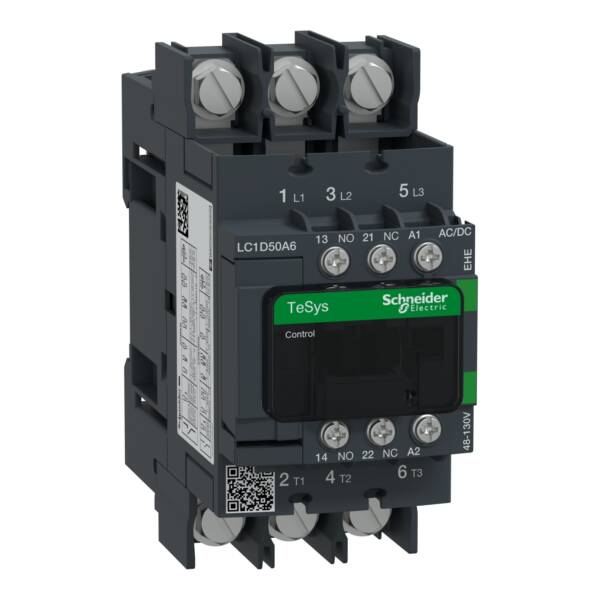

LC1D50A6EHE
-
Weight (kg)
-
0.91 kg
-
Type
-
TeSys Deca contactors
-
Type of electrical connection of main circuit
-
Screw connection
-
Width
-
55
-
Rated control supply voltage AC 50 Hz
-
48…130 Volt
-
Rated control supply voltage AC 60 Hz
-
48…130 Volt
-
Rated operation power at AC-3, 400 V
-
22
-
Number of normally open contacts as main contact
-
3
-
Number of auxiliary contacts as normally closed contact
-
1
-
Number of auxiliary contacts as normally open contact
-
1
-
Modular version
-
TRUE
-
Operating voltage AC 50 Hz
-
440 Volt
-
Depth
-
120
-
Operating voltage AC 60 Hz
-
440 Volt
-
Rated operation power NEMA
-
29.8
-
Rated operation current Ie at AC-1, 400 V
-
80
-
Rated control supply voltage DC
-
48…130 Volt
-
Height
-
122
-
Rated operation current Ie at AC-4, 400 V
-
50
-
Rated operation current Ie at AC-3, 400 V
-
50
-
Voltage type for actuating
-
AC/DC
-
Rated operation power at AC-4, 400 V
-
22
