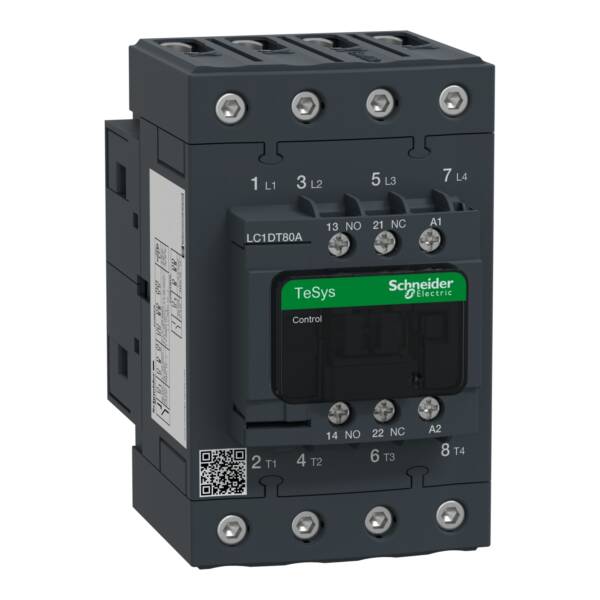

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 80 A - 115 V AC 50/60 Hz coil - Schneider Electric - LC1DT80AFE7
TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 80 A - 115 V AC 50/60 Hz coil - Schneider Electric - LC1DT80AFE7

LC1DT80AFE7

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 80 A - 115 V AC 50/60 Hz coil - Schneider Electric - LC1DT80AFE7

Control

List Price £364.42 +VAT

Our Price £273.32 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 80A/440V AC-1. It provides a 115V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1DT80AFE7
Weight (kg)
1.09 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Width
70
Rated control supply voltage AC 50 Hz
115 Volt
Rated control supply voltage AC 60 Hz
115 Volt
Number of normally open contacts as main contact
4
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Operating voltage AC 50 Hz
440 Volt
Depth
120
Operating voltage AC 60 Hz
440 Volt
Rated operation current Ie at AC-1, 400 V
80
Height
122
Voltage type for actuating
AC

Datasheet for LC1DT80AFE7 - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 80 A - 115 V AC 50/60 Hz coil - Schneider Electric - LC1DT80AFE7

Download
