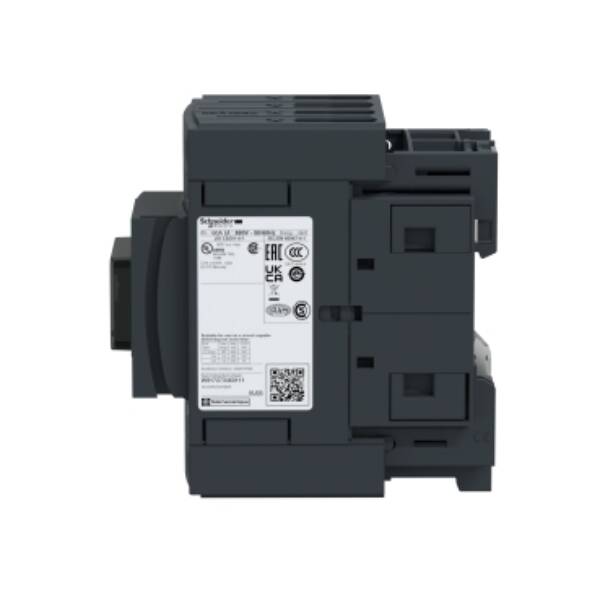

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 60 A - 230 V AC 50/60 Hz coil - Schneider Electric - LC1DT60A3P7

LC1DT60A3P7

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 60 A - 230 V AC 50/60 Hz coil - Schneider Electric - LC1DT60A3P7

Control

~~List Price £221.25 +VAT~~

Our Price £165.94 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 60A/440V AC-1. It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1DT60A3P7
Weight (kg): 1.06 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Spring clamp connection
Width: 70
Rated control supply voltage AC 50 Hz: 230 Volt
Rated control supply voltage AC 60 Hz: 230 Volt
Number of normally open contacts as main contact: 4
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Operating voltage AC 50 Hz: 440 Volt
Depth: 120
Operating voltage AC 60 Hz: 440 Volt
Rated operation current Ie at AC-1, 400 V: 60
Height: 122
Voltage type for actuating: AC

Datasheet for LC1DT60A3P7 - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 60 A - 230 V AC 50/60 Hz coil - Schneider Electric - LC1DT60A3P7

Download
