TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1DT40E7
TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1DT40E7

LC1DT40E7

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1DT40E7

Control

List Price £107.67 +VAT

Our Price £80.75 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

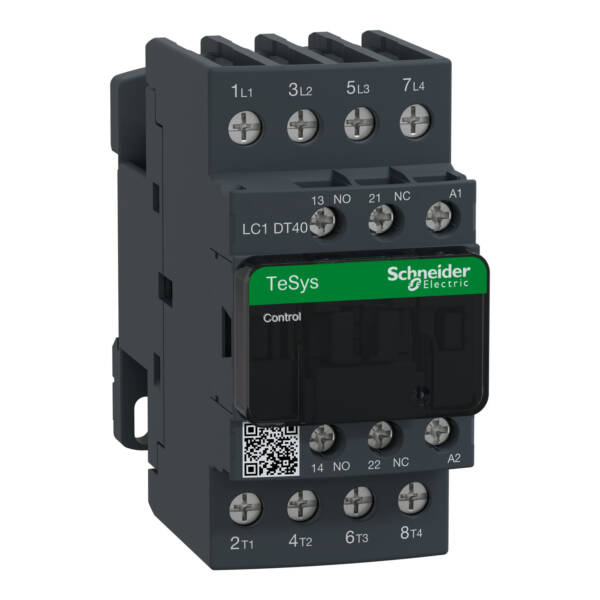

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 40A/440V AC-1. It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1DT40E7
Weight (kg)
0.48 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Width
45
Rated control supply voltage AC 50 Hz
48 Volt
Rated control supply voltage AC 60 Hz
48 Volt
Number of normally open contacts as main contact
4
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Operating voltage AC 50 Hz
440 Volt
Depth
99
Operating voltage AC 60 Hz
440 Volt
Rated operation current Ie at AC-1, 400 V
40
Height
91
Voltage type for actuating
AC

Datasheet for LC1DT40E7 - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 48 V AC 50/60 Hz coil - Schneider Electric - LC1DT40E7

Download
