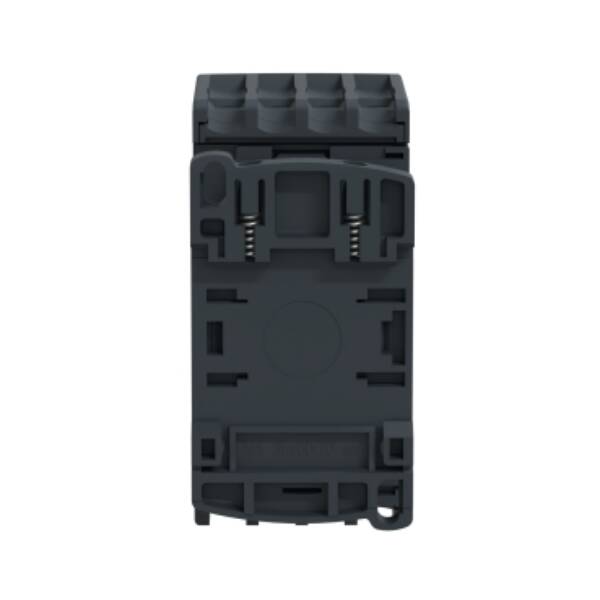

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 32 A - 48 V DC standard coil - Schneider Electric - LC1DT32ED

LC1DT32ED

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 32 A - 48 V DC standard coil - Schneider Electric - LC1DT32ED

Control

~~List Price £125.42 +VAT~~

Our Price £94.07 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 32A/690V AC-1. It provides a 48V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1DT32ED
Weight (kg): 0.62 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 45
Number of normally open contacts as main contact: 4
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Depth: 107
Rated operation current Ie at AC-1, 400 V: 32
Height: 91
Voltage type for actuating: DC
Rated control supply voltage DC: 48 Volt

Datasheet for LC1DT32ED - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 32 A - 48 V DC standard coil - Schneider Electric - LC1DT32ED

Download
