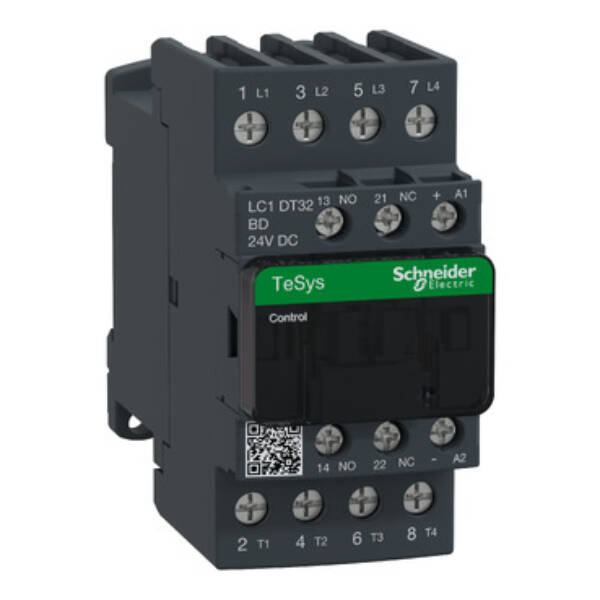

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 32 A - 24 V DC standard coil - Schneider Electric - LC1DT32BD

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 32 A - 24 V DC standard coil - Schneider Electric - LC1DT32BD

LC1DT32BD

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 32 A - 24 V DC standard coil - Schneider Electric - LC1DT32BD

Automation

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 32A/690V AC-1. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £121.87 +VAT~~

Our Price £91.40 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Specifications

Brand: Schneider Electric
Type: TeSys Deca contactors
Range: TeSys Deca contactors
Part No: LC1DT32BD
Weight (kg): 0.63 kg

Datasheet for LC1DT32BD - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 32 A - 24 V DC standard coil - Schneider Electric - LC1DT32BD

Download
