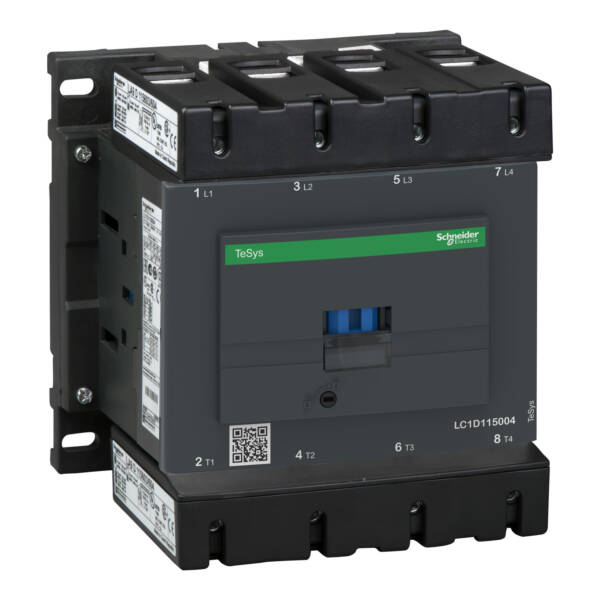

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 24 V DC standard coil - Schneider Electric - LC1D115004BD

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 24 V DC standard coil - Schneider Electric - LC1D115004BD

LC1D115004BD

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 24 V DC standard coil - Schneider Electric - LC1D115004BD

Control

~~List Price £741.84 +VAT~~

Our Price £556.38 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys Deca contactor, 4-pole (4NO), for non-inductive load applications up to 200A/1000V AC-1. It provides a 24V DC coil with transient suppressor module, power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (150mm width), mounting on 2 DIN-rails or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC),

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D115004BD
Weight (kg): 3.02 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 150
Number of normally open contacts as main contact: 4
Modular version: FALSE
Depth: 132
Rated operation current Ie at AC-1, 400 V: 200
Height: 158
Rated control supply voltage DC: 24 Volt
Voltage type for actuating: DC

Datasheet for LC1D115004BD - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 24 V DC standard coil - Schneider Electric - LC1D115004BD

Download
